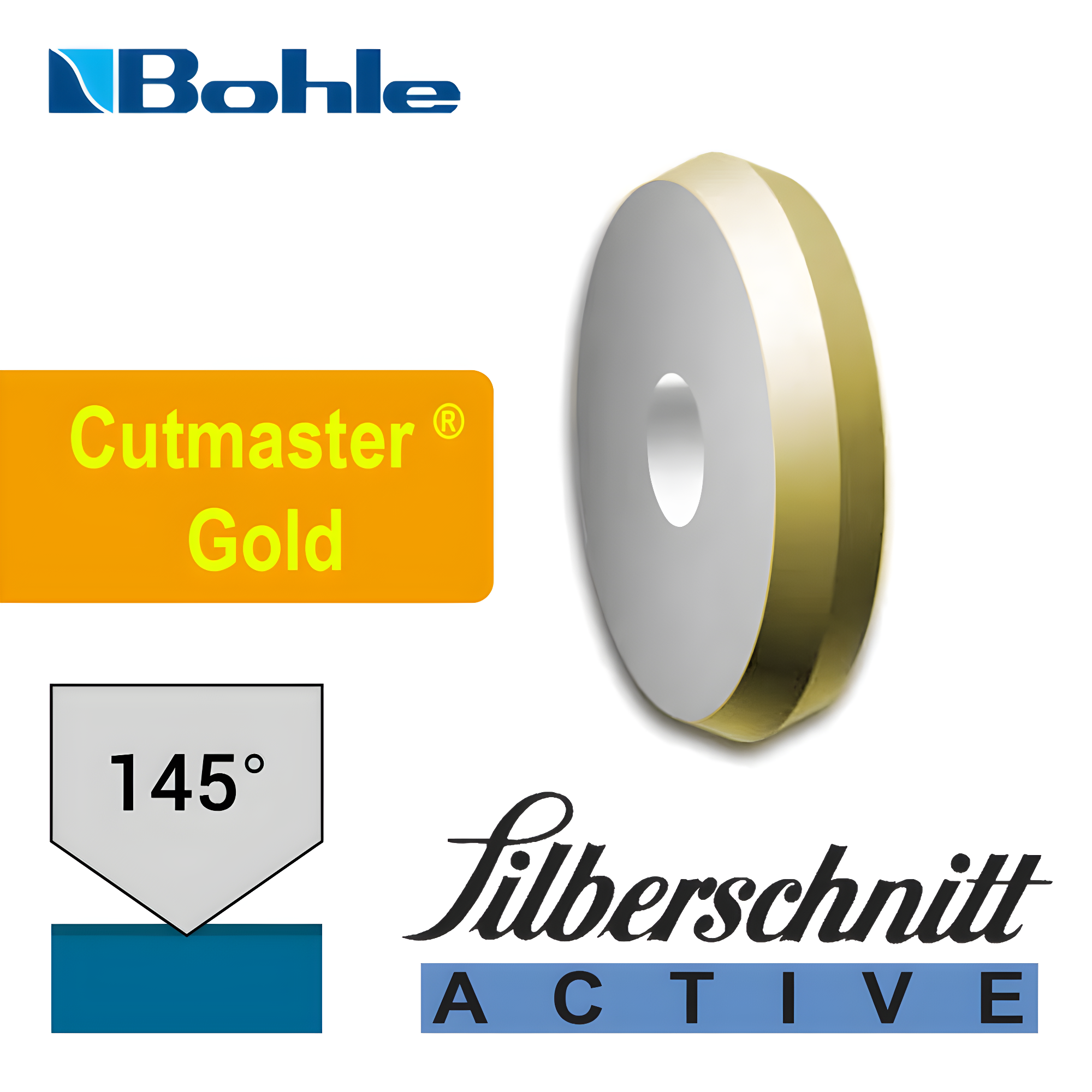

Bohle Silberschnitt® Cutmaster® Gold BO 12A145G Carbide Cutting Wheel – 145°
The Bohle Silberschnitt® Cutmaster® Gold BO 12A145G is a highly advanced, premium carbide cutting wheel designed for industrial automatic and CNC glass cutting machines, including Hegla systems. Featuring a 145-degree cutting angle and a specialized “Active” grind, this coated carbide wheel measures 4.1 mm in outer diameter. It is specifically optimized to deliver exceptionally clean breaks and a consistently high cutting quality on glass thicknesses of 6 mm, 8 mm, and 10 mm. The Cutmaster® Gold series significantly reduces maintenance costs by providing a service life of over 250 kilometers, far exceeding conventional carbide wheels, making it ideal for processing float glass and laminated safety glass (LSG).
Technical details
- BrandSilberschnitt® by Bohle
- ModelBO 12A145G
- Product TypeAutomatic / CNC Cutting Wheel
- MaterialCarbide
- CoatedYes
- Outer Diameter4.1 mm
- Bore (Inner) Diameter1.42 mm
- Material Thickness1.08 mm
- Cutting Edge Angle145°
- GrindActive
- Suitable Glass Thickness6 mm, 8 mm, 10 mm
- Machine CompatibilityAutomatic cutting tables (e.g., Hegla, Bottero, Bavelloni, LiSEC)
- Package Contents1 Piece
- Country of OriginGermany (DE)
Description
The Bohle Silberschnitt® Cutmaster® Gold BO 12A145G represents the pinnacle of industrial glass cutting technology. Designed to meet the rigorous demands of automated glass processing, this carbide cutting wheel features a specially developed coating that dramatically extends its service life compared to standard wheels. The 145-degree angle paired with an active grind ensures optimum tension buildup in the glass, reducing splintering and resulting in superior edge quality. It is widely utilized on major machinery brands like Hegla for precise scoring of 6 mm, 8 mm, and 10 mm float and laminated glass panels, allowing for extended production runs with less frequent parameter adjustments.
Spec & Technical Data
Manufactured in Germany, the BO 12A145G cutting wheel undergoes a highly precise, multi-stage grinding process to achieve its exact dimensions: a 4.1 mm outer diameter, a 1.42 mm honed bore hole, and a 1.08 mm thickness. Its “Active” grind geometry and 145° cutting angle are fine-tuned for penetrating glass substrates efficiently. The advanced Cutmaster® Gold coating minimizes friction and wear during continuous high-speed scoring on automated lines. Delivered as a single piece, this wheel is engineered to provide reliable, long-distance cutting performance of over 250 kilometers, fitting perfectly into standard wheel holders on industrial cutting bridges.
