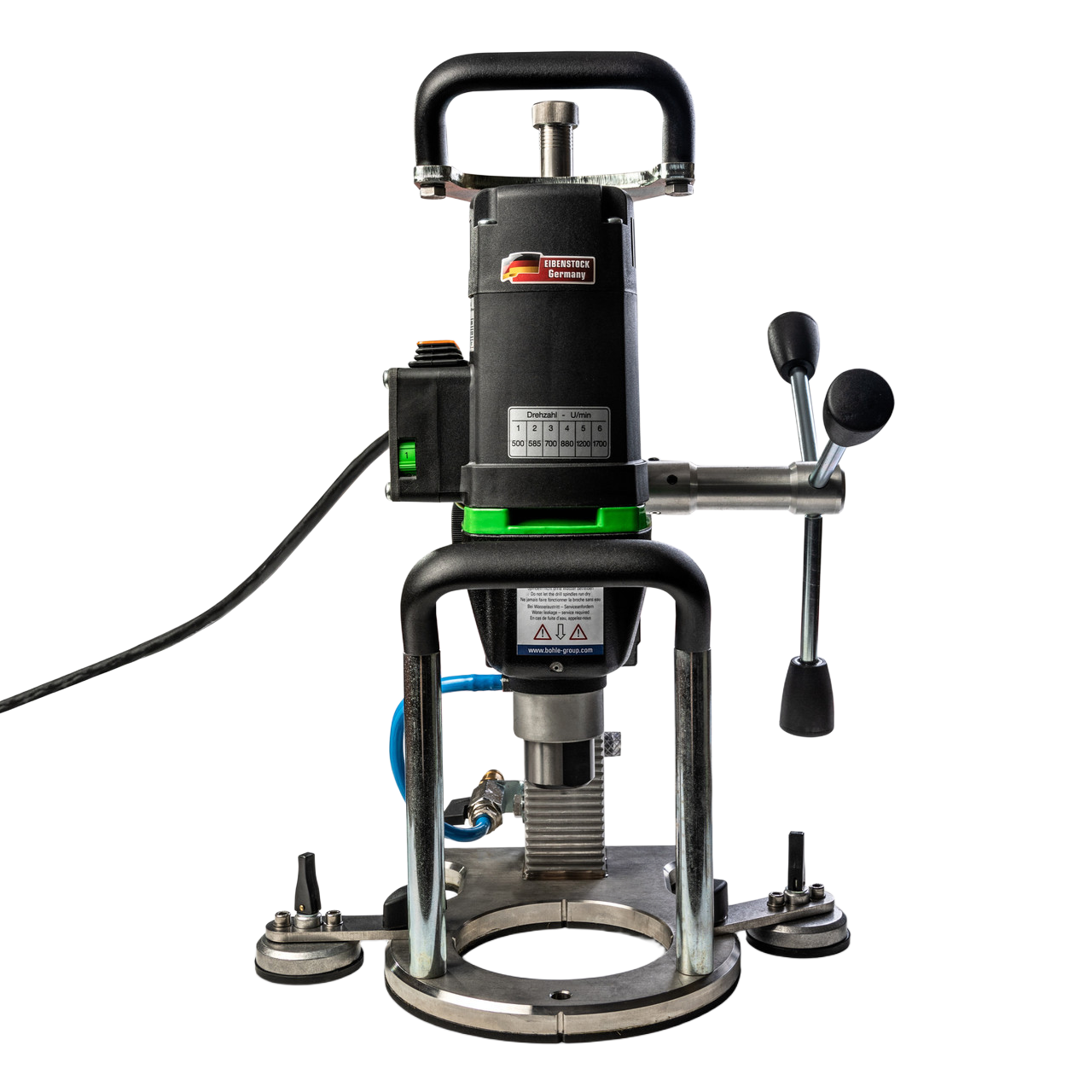

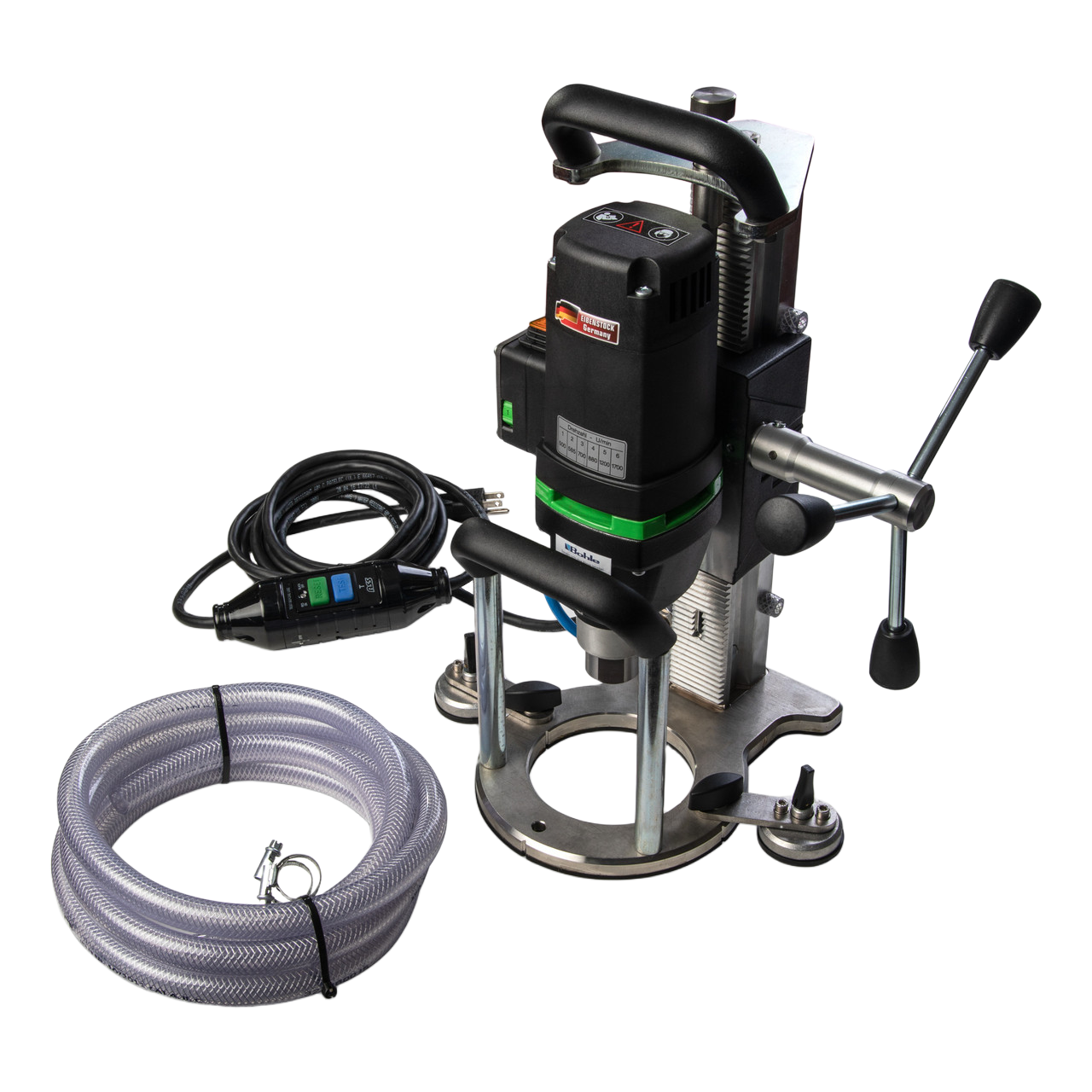

Bohle Pico Drill 100 Manual Glass Drilling Machine (BO 79.200)
The Bohle Pico Drill 100 (BO 79.200) is an efficient and highly compact manual wet glass drilling machine designed for processing small to medium-sized glass panes, tiles, and ceramic slabs. Featuring a powerful 1.15 kW electric drive unit with infinitely variable speed control (500 to 1,700 rpm) via a potentiometer, this portable machine ensures optimal drilling performance. It is equipped with an electronically controlled soft start and built-in temperature and overload shutdown systems for maximum safety and durability. Ideal for both workshop use and on-site applications, it supports drill diameters from 3 to 75 mm and allows easy adjustment of the drilling depth from 3 to 20 mm by means of a stop.
Technical details
- BrandBohle
- ModelBO 79.200
- Product TypePortable Wet Glass Drilling Machine
- Electric Power1.15 kW
- Electrical Connection230V-50Hz-1NPE
- Drive TypeElectric
- Speed (Revolutions)500 - 1,700 rpm (infinitely variable)
- Drill Diameter Range3 - 75 mm
- Drilling Depth3 - 20 mm
- External Thread½
- Laser PositioningNo
- PortableYes
- Safety FeaturesSoft start, temperature and overload shutdown, personal protection switch
- Suitable MaterialsGlass, Tiles, Ceramic slabs
- Application AreaIndoor, Mobile, Outside, Stationary, Wet
- Package Contents1 Piece
- Country of OriginGermany (DE)
Description
The Bohle Pico Drill 100 (BO 79.200) delivers an exceptional price-performance ratio for manual glass processing. Designed specifically as a top drilling machine with manual feed, it greatly simplifies the wet drilling of glass and ceramic materials. The machine boasts a robust and easy-to-clean construction, making it highly portable and suitable for rugged construction sites as well as stationary indoor workshops. Its integrated ½” external thread provides universal compatibility with standard diamond core drill bits up to 75 mm. With the inclusion of a personal protection switch as standard, the Pico Drill guarantees a secure operating environment for industrial glazier workflows.
Spec & Technical Data
Engineered for continuous reliability, the Bohle Pico Drill 100 relies on a 1.15 kW electric drive unit powered by a standard 230V-50Hz connection. The machine incorporates sophisticated electronic controls that manage soft start functions and automatically shut down the motor in the event of dangerous temperature spikes or physical overloads. Operators can precisely control the drilling depth between 3 and 20 mm using an adjustable mechanical stop, while the potentiometer allows seamless speed transitions between 500 and 1,700 rpm. This level of precise control ensures clean, break-proof drilling results on brittle materials without the risk of thermal shock or excessive mechanical stress.
