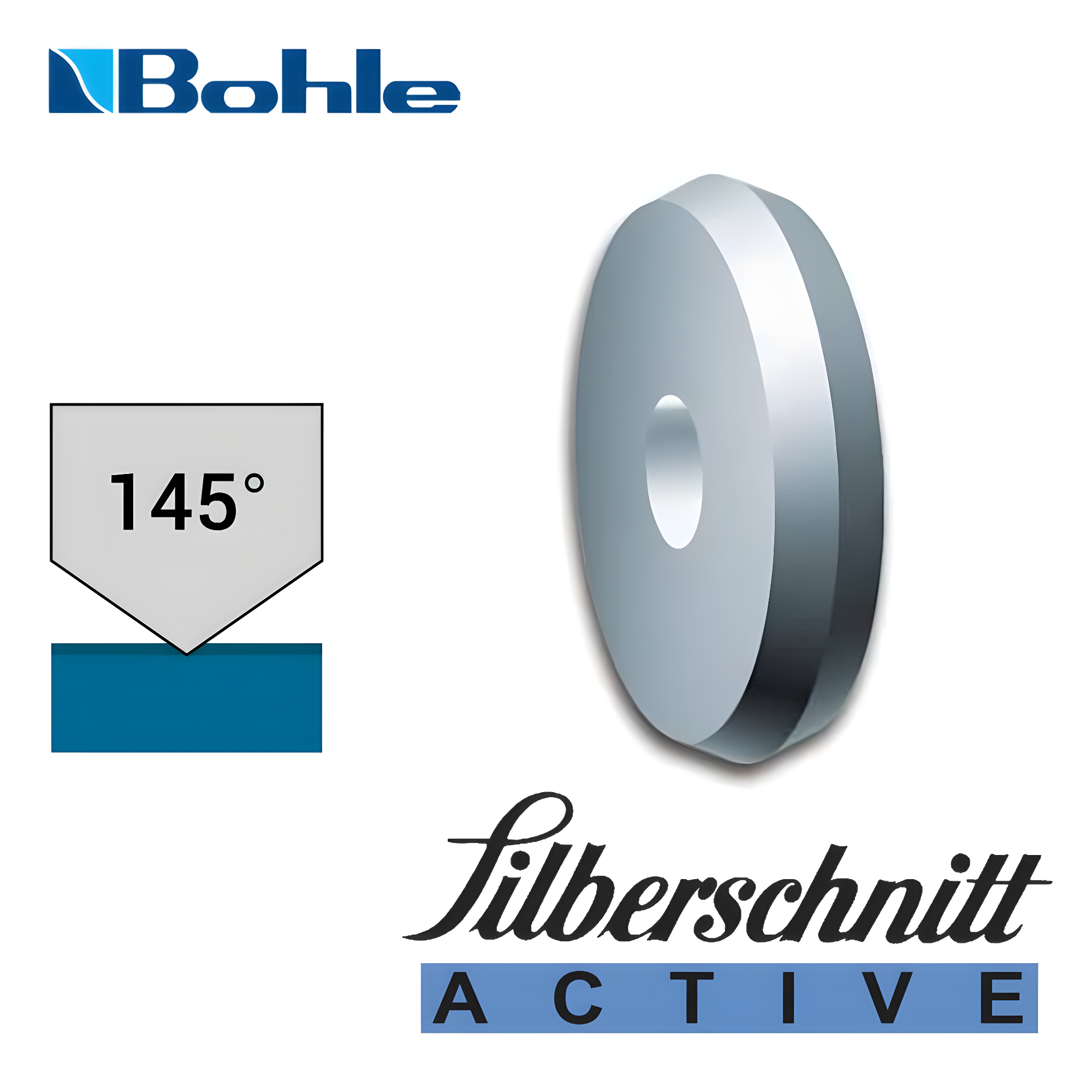

Bohle Silberschnitt® BO 02A145 Carbide Cutting Wheel – 145°
The Bohle Silberschnitt® BO 02A145 is a high-performance carbide cutting wheel engineered for precision scoring on industrial automatic and CNC glass cutting machines. Featuring a specialized 145-degree cutting edge angle and an “Active” grind geometry, this wheel measures 5.0 mm in outer diameter, 1.3 mm in bore diameter, and 1.0 mm in thickness. It is specifically optimized to cut float glass efficiently across standard thicknesses of 6 mm, 8 mm, and 10 mm. Manufactured in Germany from premium tungsten carbide metal, it ensures high cutting speeds, superior edge quality, and an extended service life in demanding industrial processing environments.
Technical details
- BrandSilberschnitt® by Bohle
- ModelBO 02A145 (B002A145)
- Product TypeAutomatic / CNC Cutting Wheel
- MaterialCarbide (Tungsten Carbide / HM)
- Outer Diameter5.0 mm
- Bore (Inner) Diameter1.3 mm
- Thickness1.0 mm
- Cutting Edge Angle145°
- GrindActive
- Suitable Glass Thickness6 mm, 8 mm, 10 mm
- Machine CompatibilityAutomatic cutting tables (LiSEC, Bottero, Intermac, Bystronic, Glaston, Bavelloni, Hegla, Grenzebach)
- Package Contents1 Piece
- Country of OriginGermany (DE)
Description
The Bohle Silberschnitt® BO 02A145 carbide cutting wheel is an industry-standard solution designed for precision flat glass processing on automated CNC cutting lines. Featuring a 145-degree cutting angle combined with an “Active” grind geometry, this wheel ensures optimal tension building and clean fracture lines upon breaking. Optimized for 6 mm, 8 mm, and 10 mm glass thicknesses, and crafted from high-grade tungsten carbide, it offers exceptional durability, significantly reducing downtime and replacement frequency on high-speed industrial cutting systems.
Spec & Technical Data
Manufactured in Germany under strict quality controls, the BO 02A145 wheel features precise physical specifications including a 5.0 mm outer diameter, a 1.3 mm inner bore hole, and a 1.0 mm thickness. Its specialized 145° angle and active grind profile are fine-tuned to penetrate standard glass sheets—specifically 6 mm, 8 mm, and 10 mm profiles—smoothly, maximizing surface integrity and minimizing edge chipping. Fully compatible with leading industrial cutting tables, it provides reliable, long-distance scoring performance for professional glass manufacturers.
