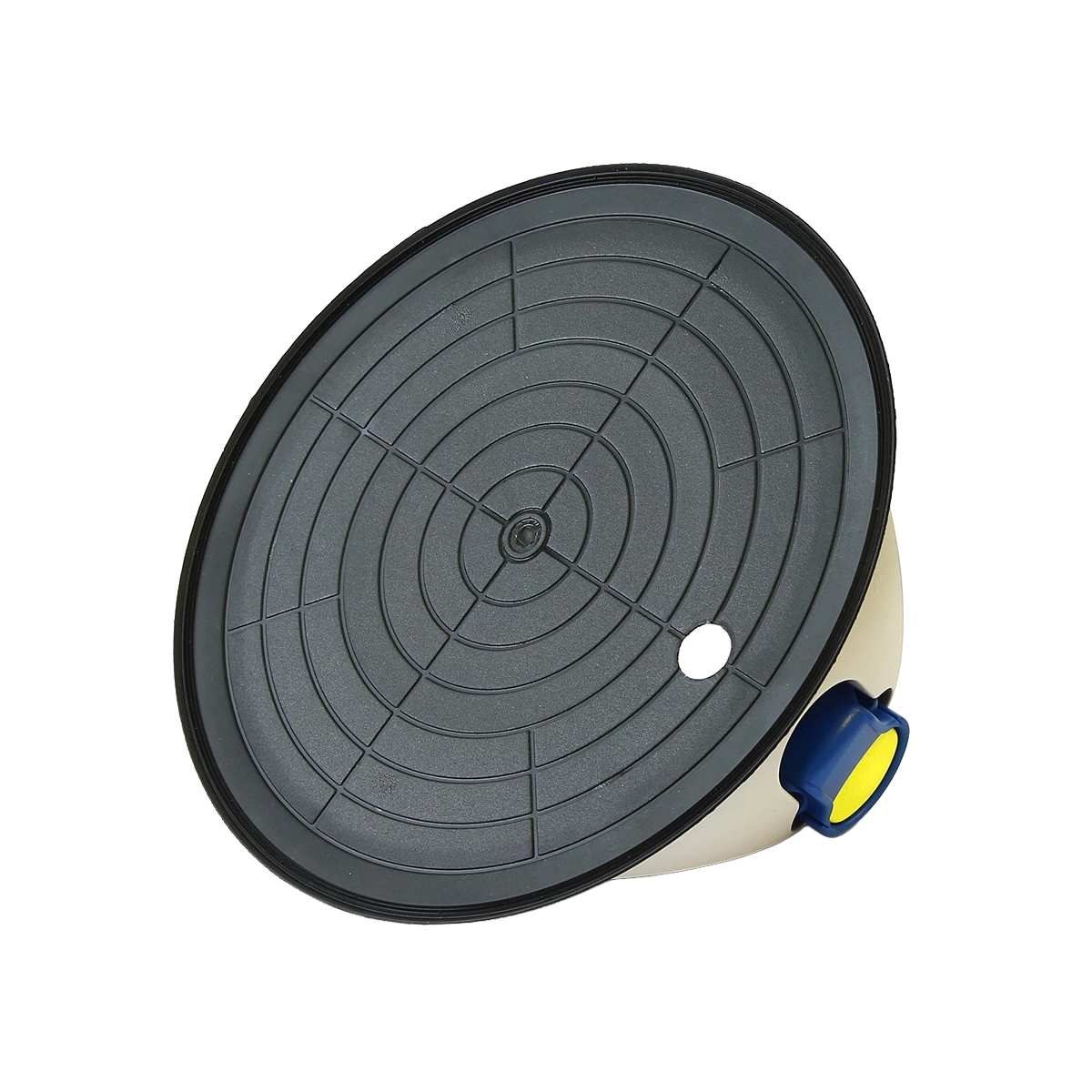

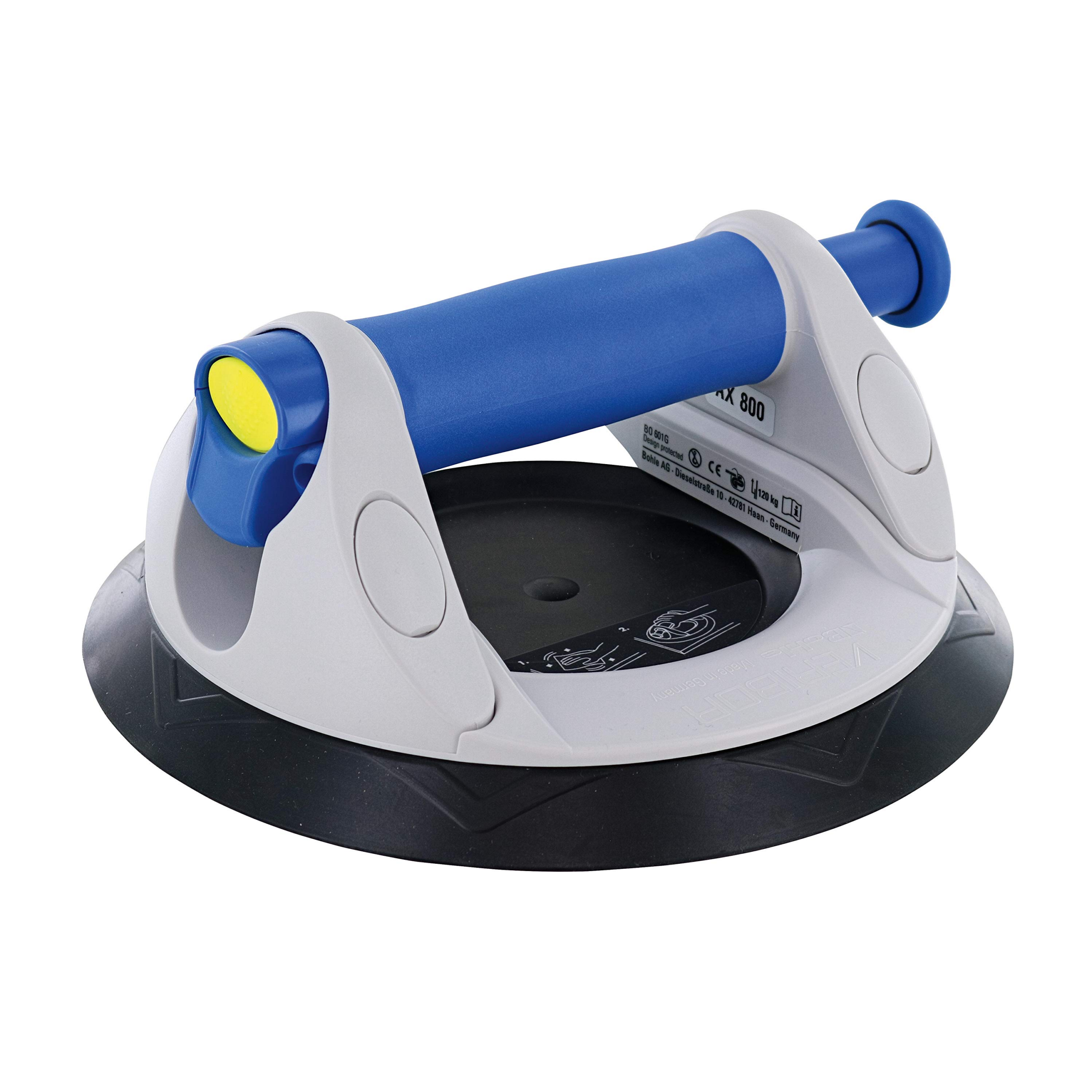

Bohle Veribor® BO 601G 1-Cup Plastic Pump Suction Lifter – 120 kg
The Bohle Veribor® BO 601G is an ergonomic single-cup manual pump suction lifter designed for the safe handling and transport of heavy materials with flat, gas-tight surfaces. Manufactured with a high-strength ABS plastic body and a 213 mm rubber suction pad, it generates high vacuum pressure through an integrated manual plunger pump mechanism. Certified for safe working loads up to 120 kg, it is equipped with a clearly visible vacuum safety indicator on the pump plunger to continuously monitor the vacuum hold, ensuring safety and control during demanding glazing operations.
Technical details
- BrandVeribor® by Bohle
- ModelBO 601G
- Product Type1-Cup Pump Suction Lifter
- Body MaterialPlastic (ABS)
- Suction Pad Diameter213 mm
- Number of Suction Cups1
- Maximum Safe Load Capacity120 kg (Parallel lifting direction)
- Lifting DirectionParallel
- Vacuum GenerationManual Pump

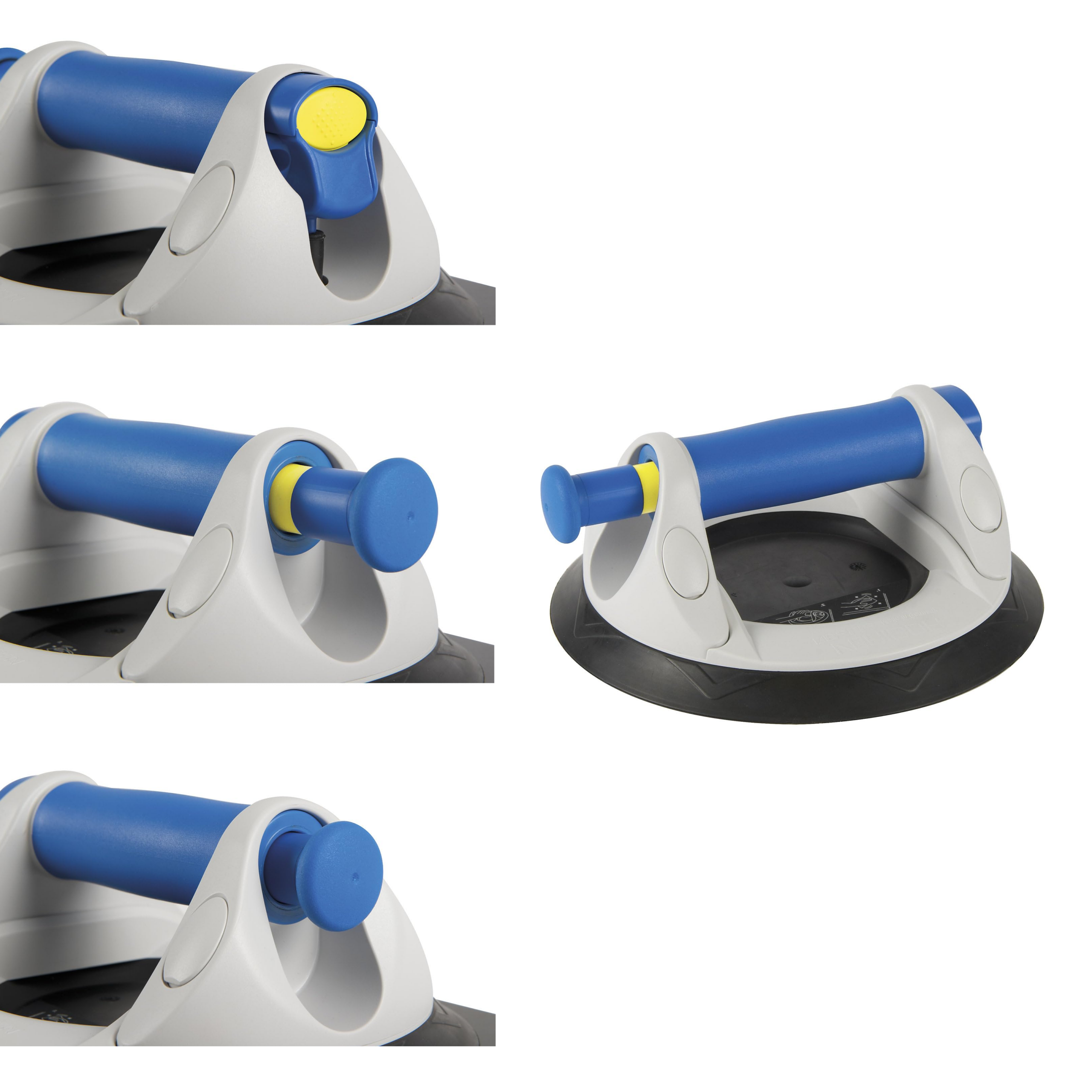

- Safety MonitoringVacuum safety indicator on pump plunger
- Suitable SurfacesFlat, gas-tight surfaces (Glass, Metal, Plastic, Coated wood)
- Environmental StandardFree of Carcinogenic Hydrocarbon Compounds (PAHs)
- Replacement Pad ModelBO614.01G
- Usage EnvironmentIndustrial Glazing Workshops, Construction Job Sites & Heavy Glazing Operations
- Country of OriginGermany (DE)
Description
The Bohle Veribor® BO 601G pump suction lifter provides high-capacity holding power in a manual, single-cup design. Its 213 mm rubber suction pad and sturdy ABS plastic chassis allow operators to transport and position heavy architectural glass units and flat panels up to 120 kg with balanced control. The integrated plunger pump quickly establishes vacuum through smooth pumping strokes, while the clearly visible vacuum safety indicator alerts the operator if any loss of pressure occurs during transport. Manufactured in Germany to strict industrial safety standards, it combines ergonomic handling with visual vacuum security for professional glazing operations.
Spec & Technical Data
The Bohle Veribor® BO 601G is constructed around a 213 mm diameter rubber disc mounted to a high-impact ABS plastic frame. Vacuum generation is powered by a manual plunger pump equipped with a vacuum safety indicator that allows continuous monitoring of the holding pressure. The lifter is rated for a safe parallel working load limit of 120 kg on flat, gas-tight surfaces. The rubber compound is formulated free of carcinogenic PAHs, offering long-term elasticity and high resistance to common workshop conditions.
