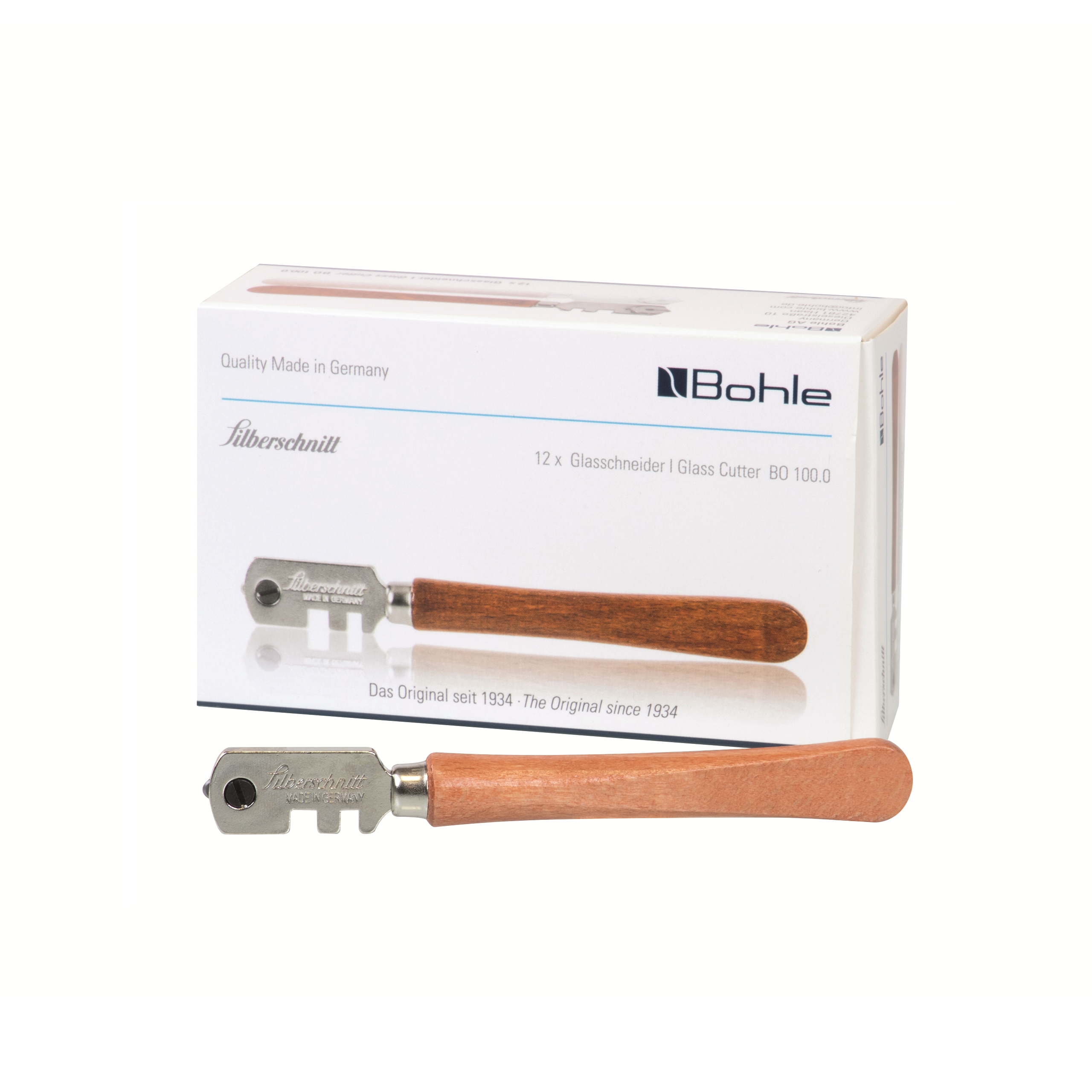

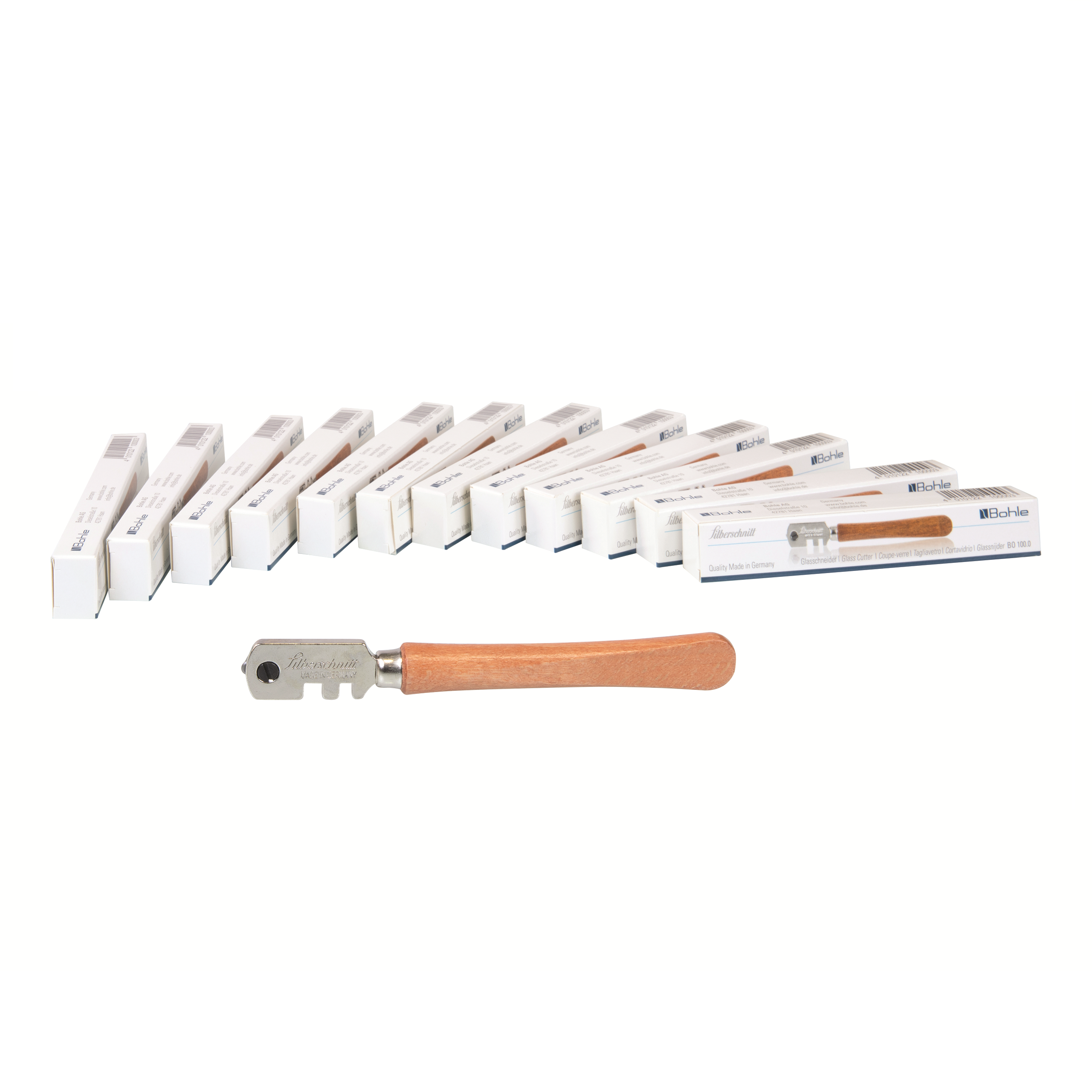

Bohle Silberschnitt® BO 100.0 Hand Glass Cutter with Wooden Handle
The Bohle Silberschnitt® BO 100.0 is a classic and highly reliable manual hand glass cutter designed for precision scoring of float, coloured, and ornamental glass. Manufactured in Germany, it features a traditional FSC-certified wooden handle and a nickel-plated rotating rosette equipped with six replaceable cutting wheels made of specially hardened alloyed steel. Suitable for glass thicknesses of 3 to 10 mm, it incorporates an oil-impregnated felt ring to ensure consistent lubrication of the axle and cutting wheel, delivering outstanding cutting quality and a long service life for professional glaziers.
Technical details
- BrandSilberschnitt® by Bohle
- ModelBO 100.0
- Product TypeHand Glass Cutter
- Handle MaterialWood (FSC® certified)
- Cutting Wheel MaterialAlloyed and Hardened Steel
- Number of Wheels6
- Glass Thickness3 - 10 mm
- Cutting Edge Angle130°
- Diameter of Wheel4.5 mm
- Distance to Straight Edge2.5 mm
- Suitable Glass TypesFloat glass, Colour glass, Ornamental glass
- Mileage (Cutting Life)1,000 m
- LubricationOil-impregnated felt ring
- Cut TypeStraight
- Weight21.26 g
- Replacement Turret ModelBO 101.0
- Country of OriginGermany (DE)
Description
The Bohle Silberschnitt® BO 100.0 glass cutter combines tradition and modernity to deliver unparalleled performance in manual glass processing. Equipped with six cutting wheels manufactured from alloyed and specially hardened steel, it ensures high durability and a precise 130-degree cutting edge angle. Every wheel undergoes a finely controlled multi-stage manufacturing process to guarantee the highest cutting quality. The integrated nickel-plated rosette and head plate protect the tool against wear, while the environmentally friendly wooden handle provides a comfortable, fatigue-free grip during continuous workshop tasks.
Spec & Technical Data
Designed for outstanding sustainability and economy, the Bohle Silberschnitt® BO 100.0 allows individual wheels or the entire cutting turret (BO 101.0) to be replaced when worn. Weighing just 21.26 g, the tool is meticulously balanced to achieve a 1,000-meter cutting mileage on glass thicknesses between 3 and 10 mm. An integrated oil-impregnated felt ring automatically lubricates the 4.5 mm diameter cutting wheel and axle, minimizing friction and ensuring smooth, straight scores on float, coloured, or ornamental glass surfaces.
