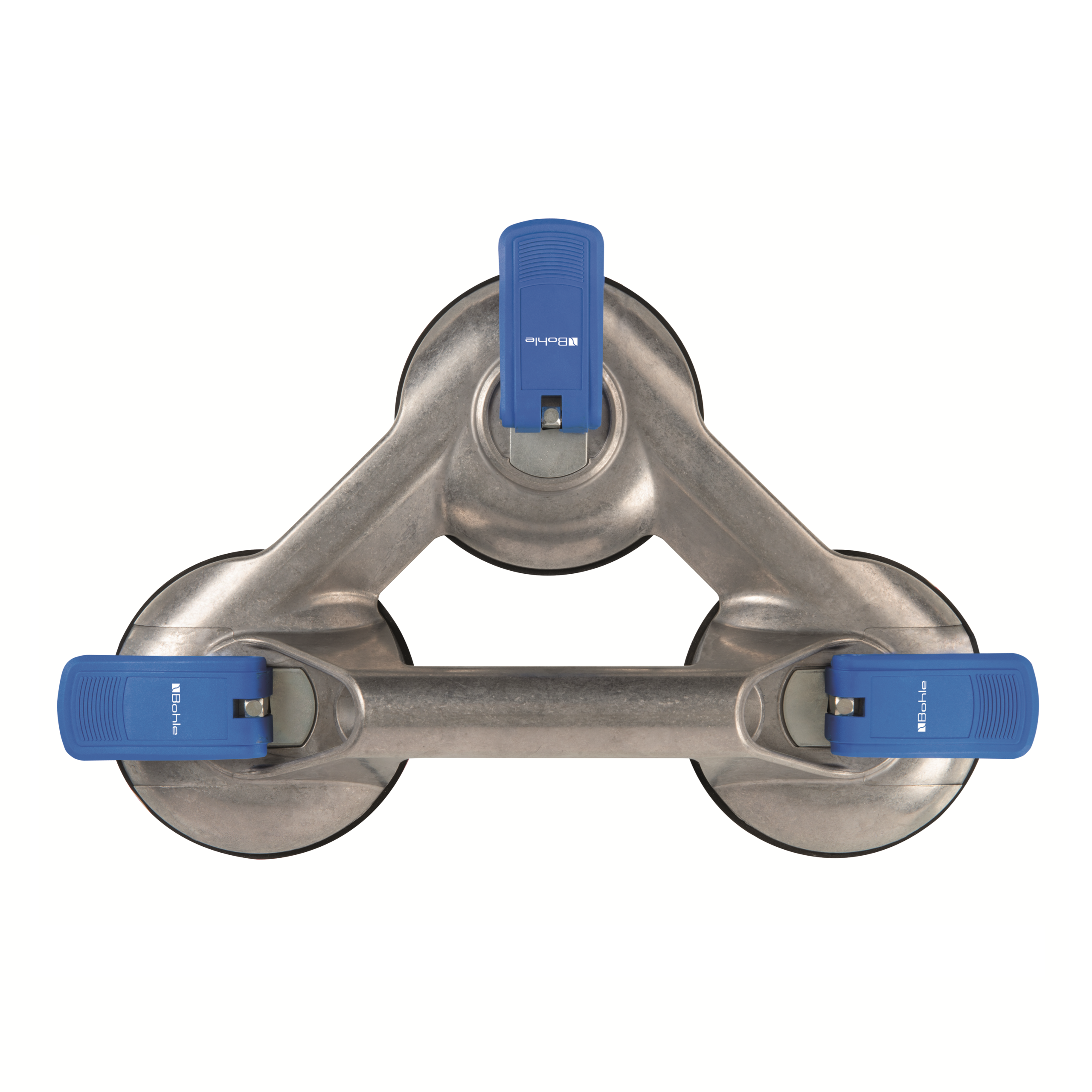

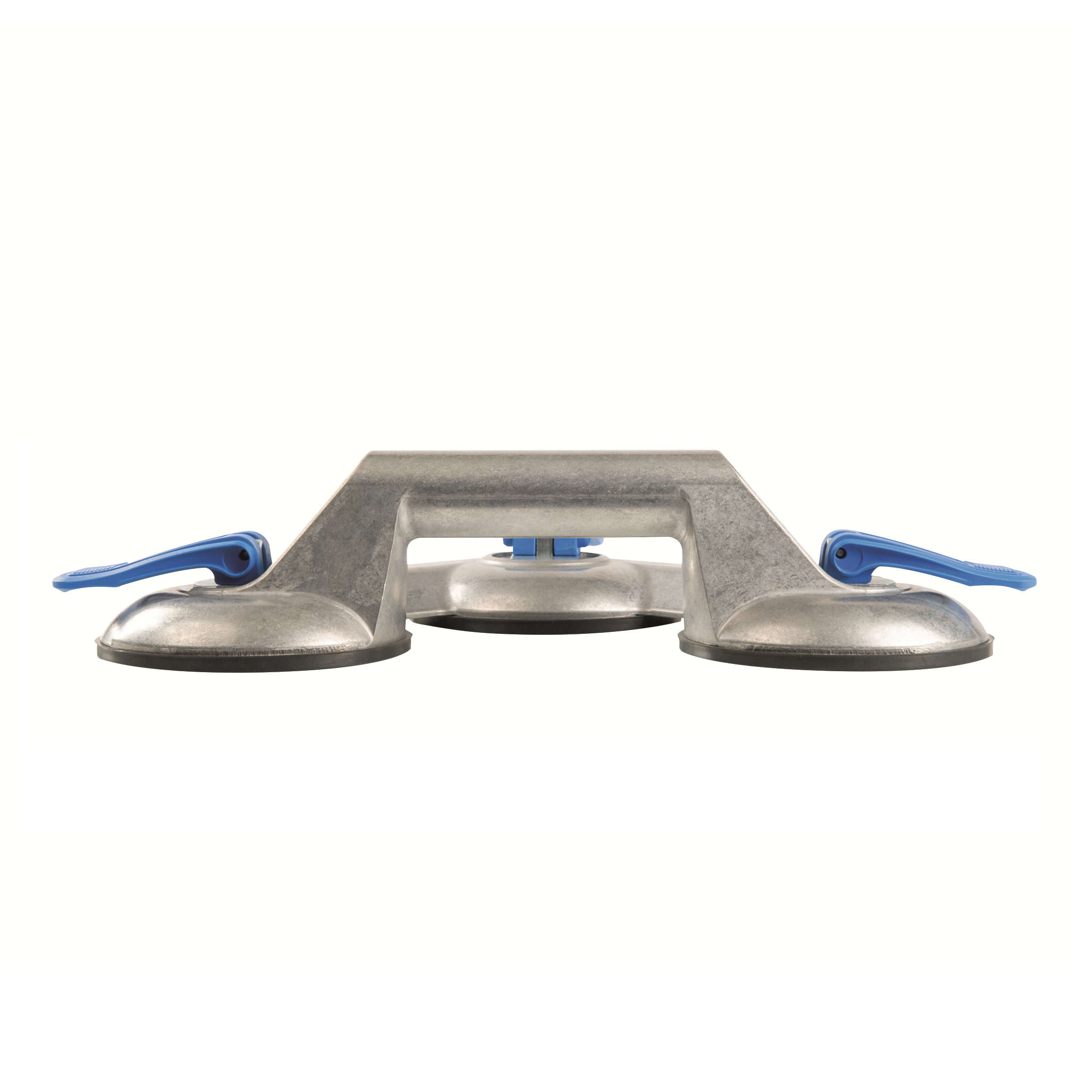

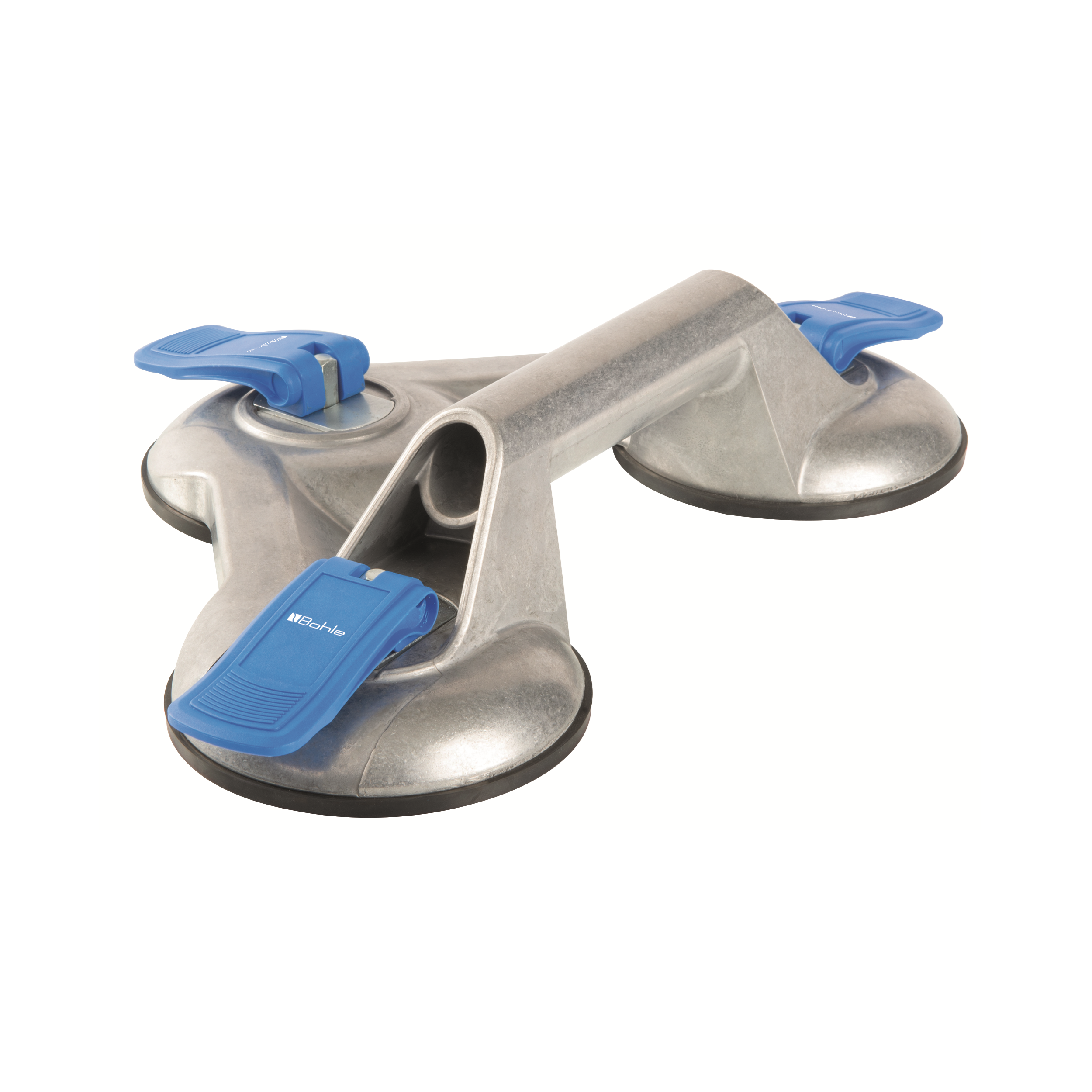

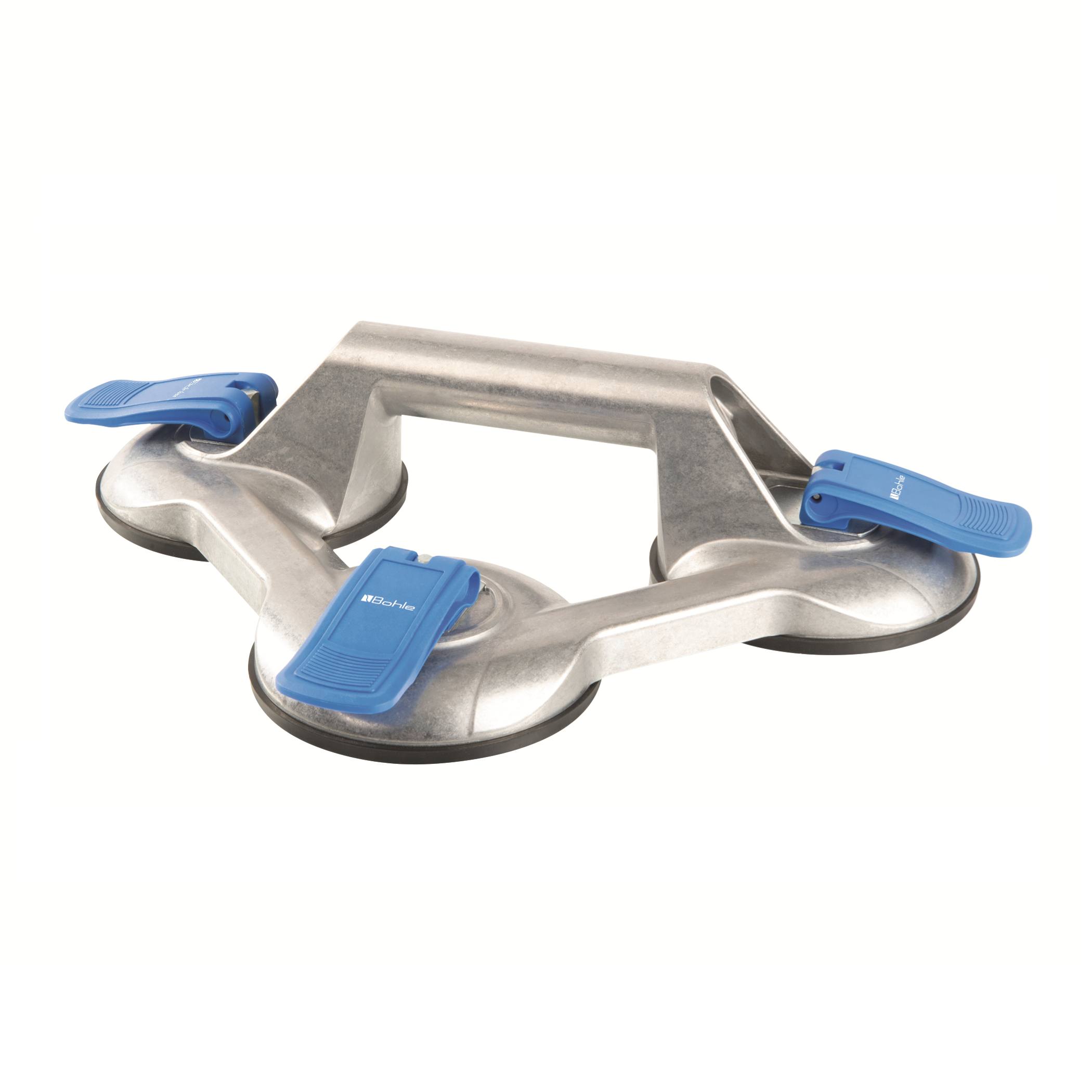

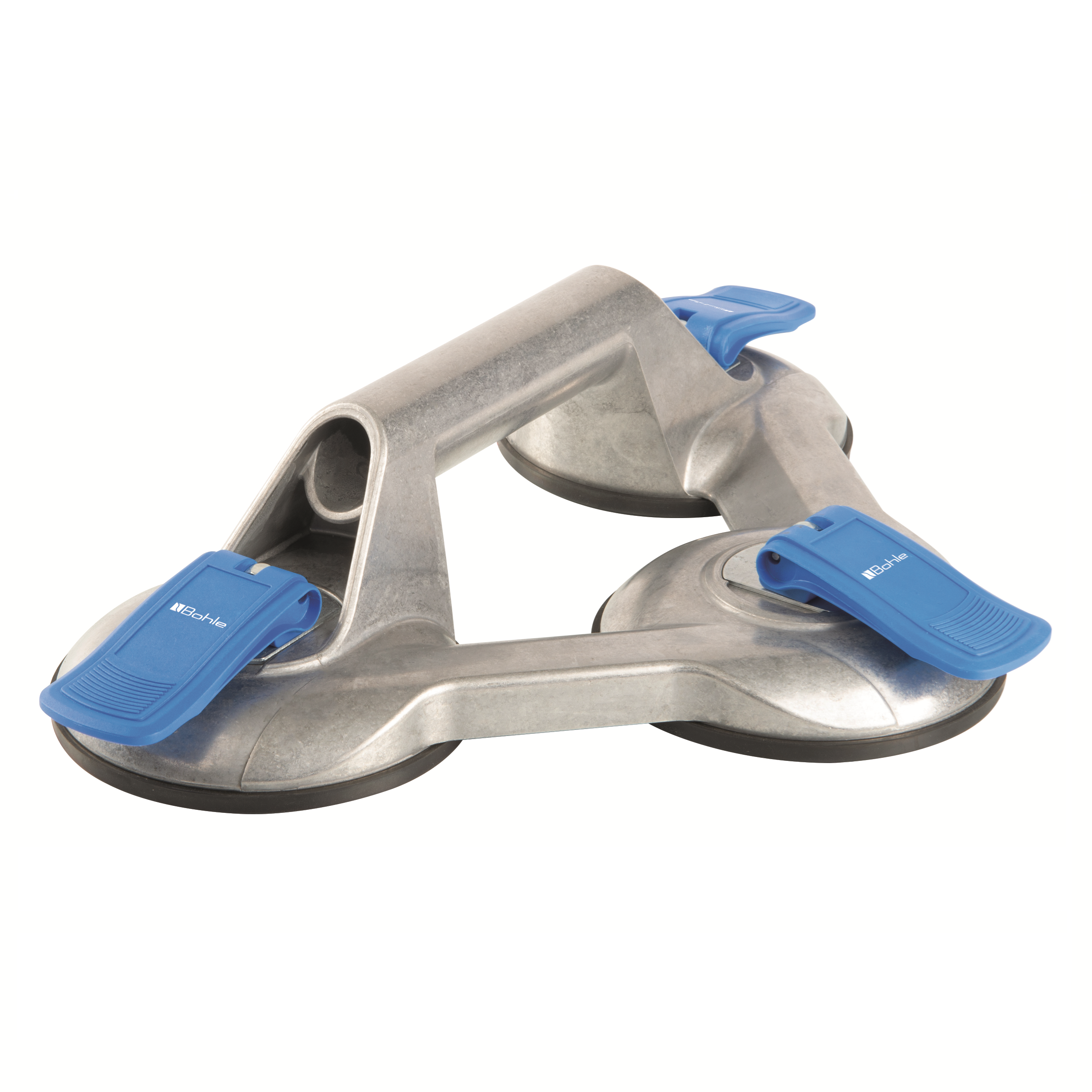

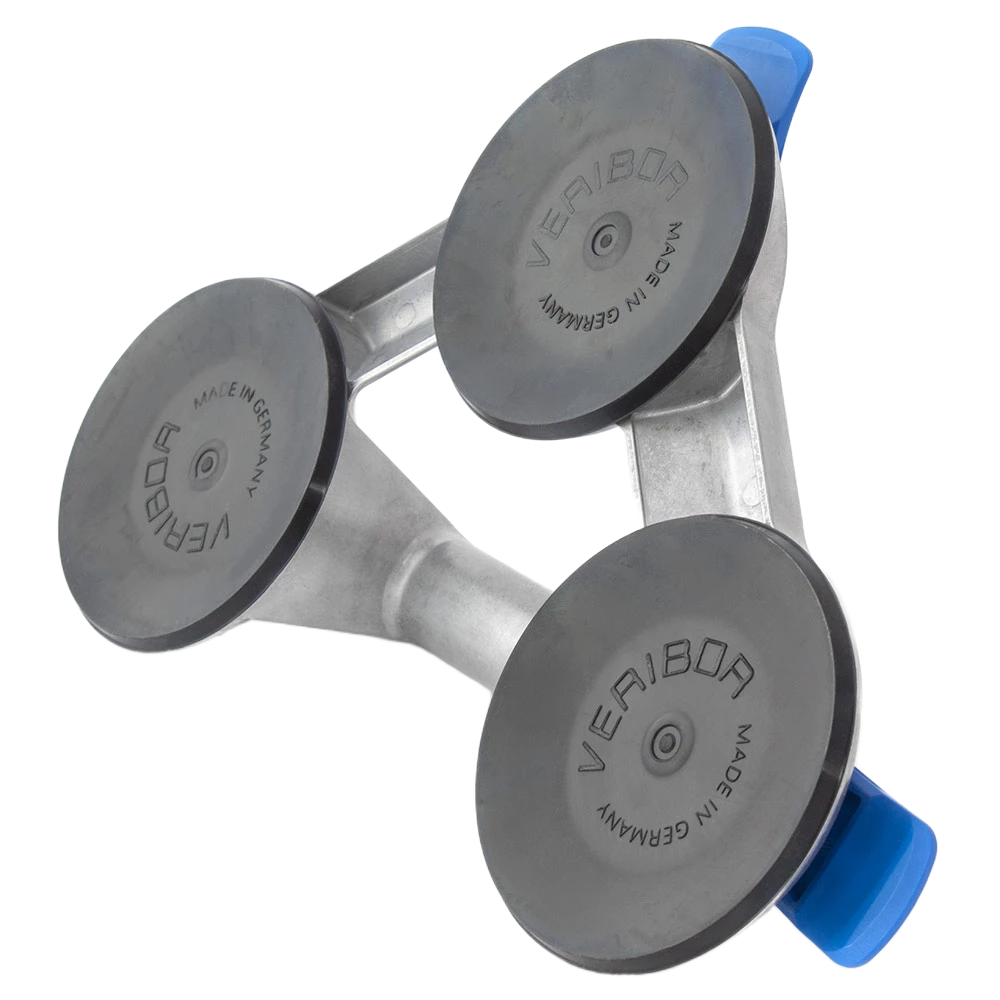

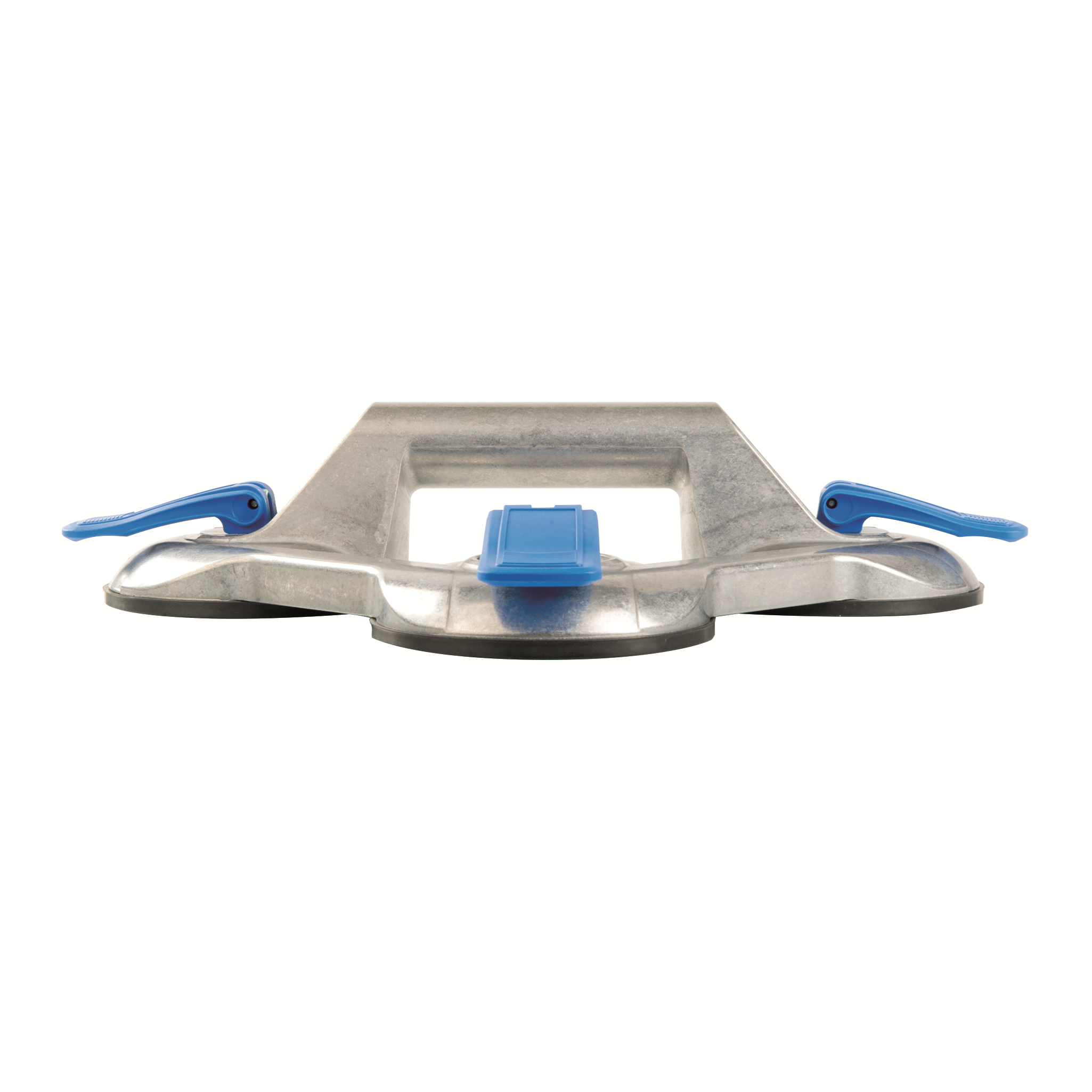

Bohle Veribor® BO 603.021 3-Cup Aluminium Suction Lifter – 100 kg
The Bohle Veribor® BO 603.021 is a premium 3-cup manual suction lifter engineered for lifting and transporting heavy gas-tight sheet materials. Constructed from lead-free aluminium, it features three 120 mm rubber suction pads that deliver a highly reliable safe load capacity of 100 kg. A key functional advantage is the third toggle lever, which can be rotated 90 degrees in two directions, narrowing the lifter’s profile for greater flexibility and ease of use in confined spaces.
Technical details
- BrandVeribor® by Bohle
- ModelBO 603.021
- Product Type3-Cup Lever Suction Lifter
- Body MaterialLead-Free Aluminium
- Suction Pad Diameter120 mm
- Number of Suction Cups3
- Maximum Safe Load Capacity100 kg (Parallel lifting direction)
- Lifting DirectionParallel
- Vacuum GenerationToggle Lever
- Suitable SurfacesFlat, gas-tight surfaces (Glass, Metal, Coated wood)
- Environmental StandardFree of Carcinogenic Hydrocarbon Compounds (PAH)
- Operating Temperature0°C to 40°C
- Replacement Pad ModelBO614.021
- Usage EnvironmentIndustrial Glazing Workshops, Construction Job Sites & Glass Installation
- Country of OriginGermany (DE)
Description

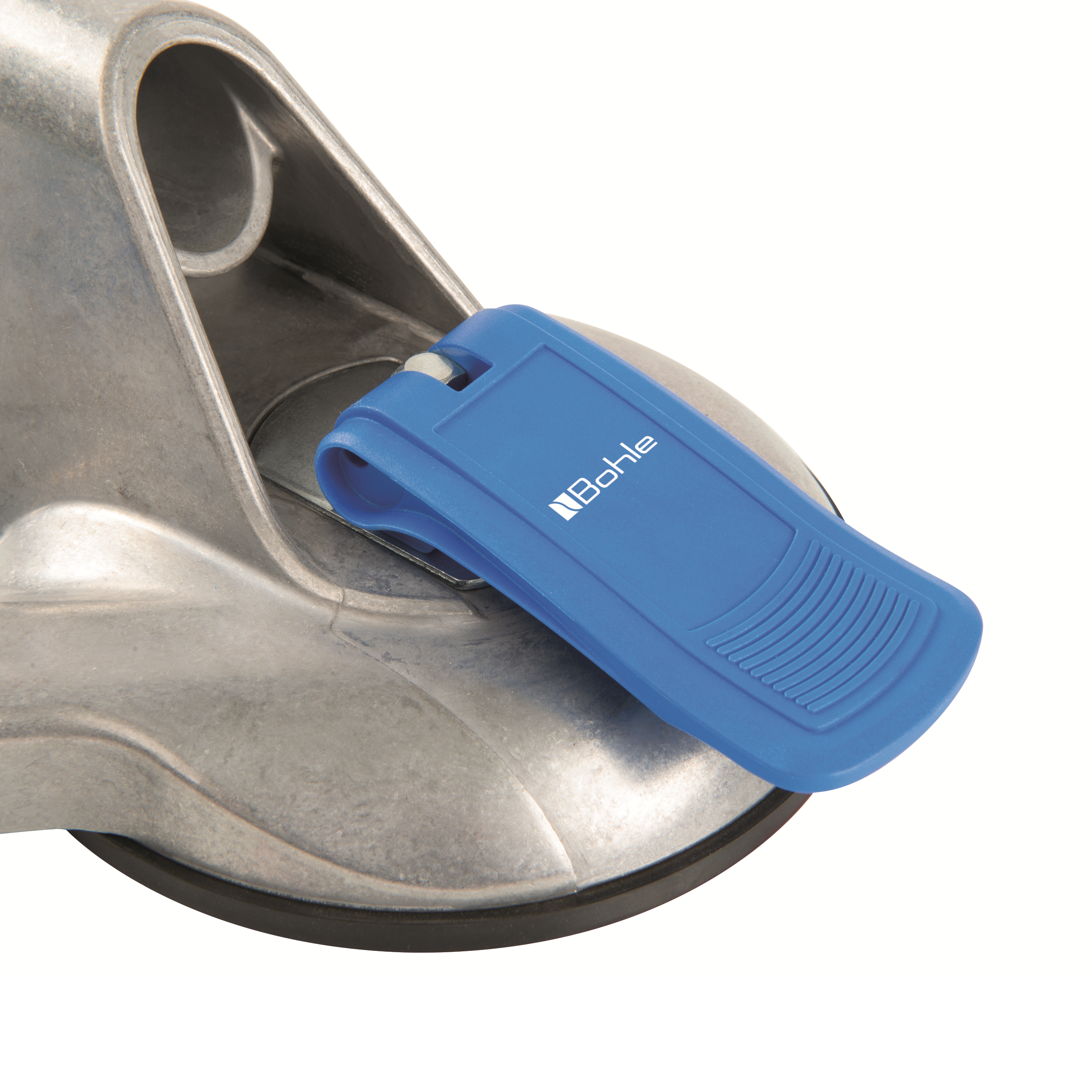

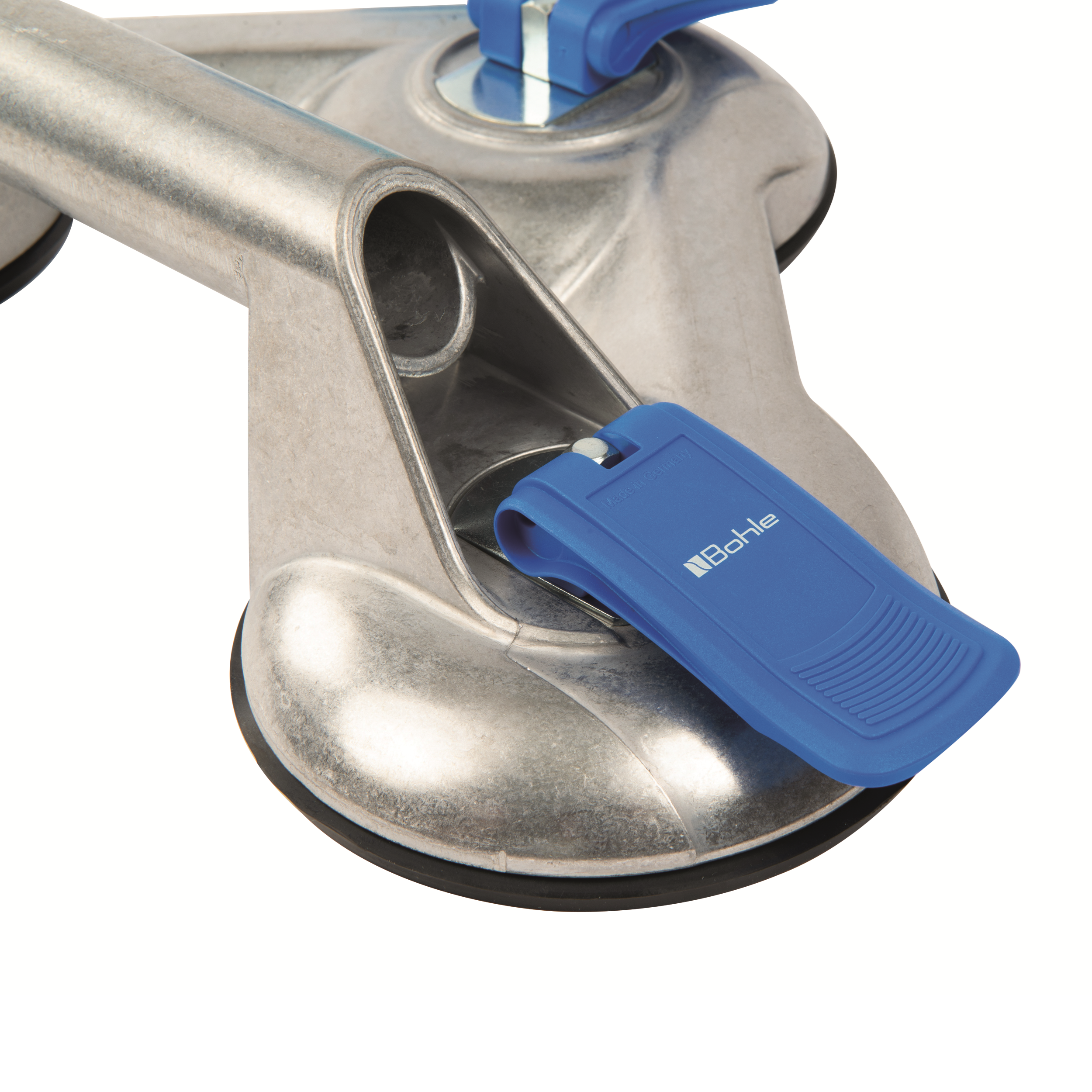

The Bohle Veribor® BO 603.021 suction lifter combines an elegant design with maximum functional efficiency for handling flat glass and large panels. Its wide contact surfaces on the toggle levers ensure ideal power transmission during vacuum generation, requiring minimal physical effort from the operator. The rubber suction pads are specifically designed to distribute vacuum pressure optimally across the outer holding area, safely accommodating up to 100 kg. Made in Germany, the lifter provides high safety and ergonomics for everyday demanding applications.
Spec & Technical Data
Built for durability and precision, the Bohle Veribor® BO 603.021 is manufactured using a rugged, lead-free aluminium frame equipped with three 120 mm rubber suction discs. The lifter is rated for a 100 kg parallel load capacity and features a unique 90-degree rotatable third rocker arm to adapt to confined working environments. Furthermore, the rubber compound is PAH-free and maintains optimal temperature resistance between 0°C and 40°C, ensuring a reliable vacuum seal on flat, gas-tight materials under standard operating conditions.
