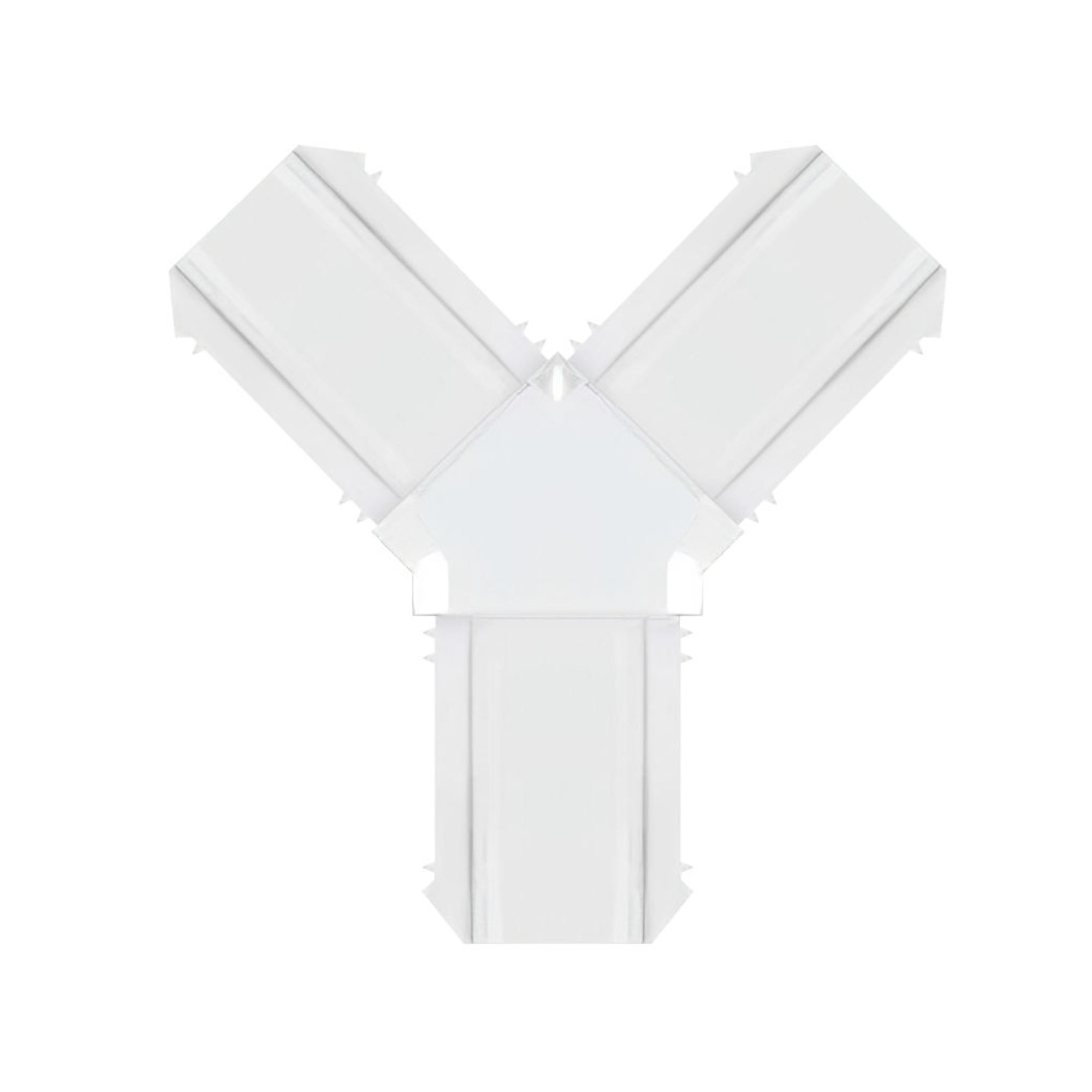

AL7® Y Shape Connector (White) for 20×5 Georgian Bar System – AL7Y520W
The AL7® 3-Way Y Shape Connector is a premium connector designed for 20×5 Georgian Bar systems used in insulated glass units (IGU). It creates accurate three-way junctions while ensuring a clean appearance, reliable assembly, and excellent compatibility with decorative Georgian bar profiles.
Technical details
- Model / Item CodeAL7Y520W
- Product NameY Shape Connector (White) for 20×5 Georgian Bar System
- BrandAL7®
- MaterialHigh Quality Engineering Polymer
- ColorWhite
- Compatibility20×5 Georgian Bar Profiles (IGU Systems)
- Product TypeY-Shaped Connector / Internal Joint Element
- Design TypeY Junction Connector
- FunctionThree-Direction Grid Connection
- Installation MethodInternal Press-Fit Installation
- Application AreaInsulated Glass Units (Double & Triple Glazing)
- System Use20×5 Georgian Bar Decorative Assembly
- Weather ResistanceUV Resistant / Anti-Aging Material
- Thermal StabilitySuitable for IGU Processing Conditions
- DurabilityLong Service Life / Crack Resistant
- Finish TypeSmooth Surface Finish
- MaintenanceMaintenance Free
- Usage PositionInside 20×5 Georgian Bar Profile
- PackingStandard Export Packing
- Country of OriginItaly
- ManufacturerAL7-Meipa S.r.l.
- CertificationAL7® Certified – European Quality Standard
Description
The AL7® 3-Way Y Shape Connector is developed to connect three 20×5 Georgian Bar profiles at a single Y-shaped intersection within decorative IGU grid layouts. It provides accurate profile positioning and secure internal engagement, helping create elegant geometric patterns while maintaining assembly precision. Its high-quality construction makes it suitable for residential, commercial, and architectural glazing projects requiring premium decorative bar systems.
Spec & Technical Data
Manufactured from premium engineering-grade polymer, the AL7® 3-Way Y Shape Connector is designed for precision press-fit installation inside 20×5 Georgian Bar profiles. The material provides excellent mechanical strength, dimensional accuracy, UV resistance, and resistance to aging under normal environmental conditions. It maintains stable performance during IGU manufacturing and throughout the service life of the glazing system.
