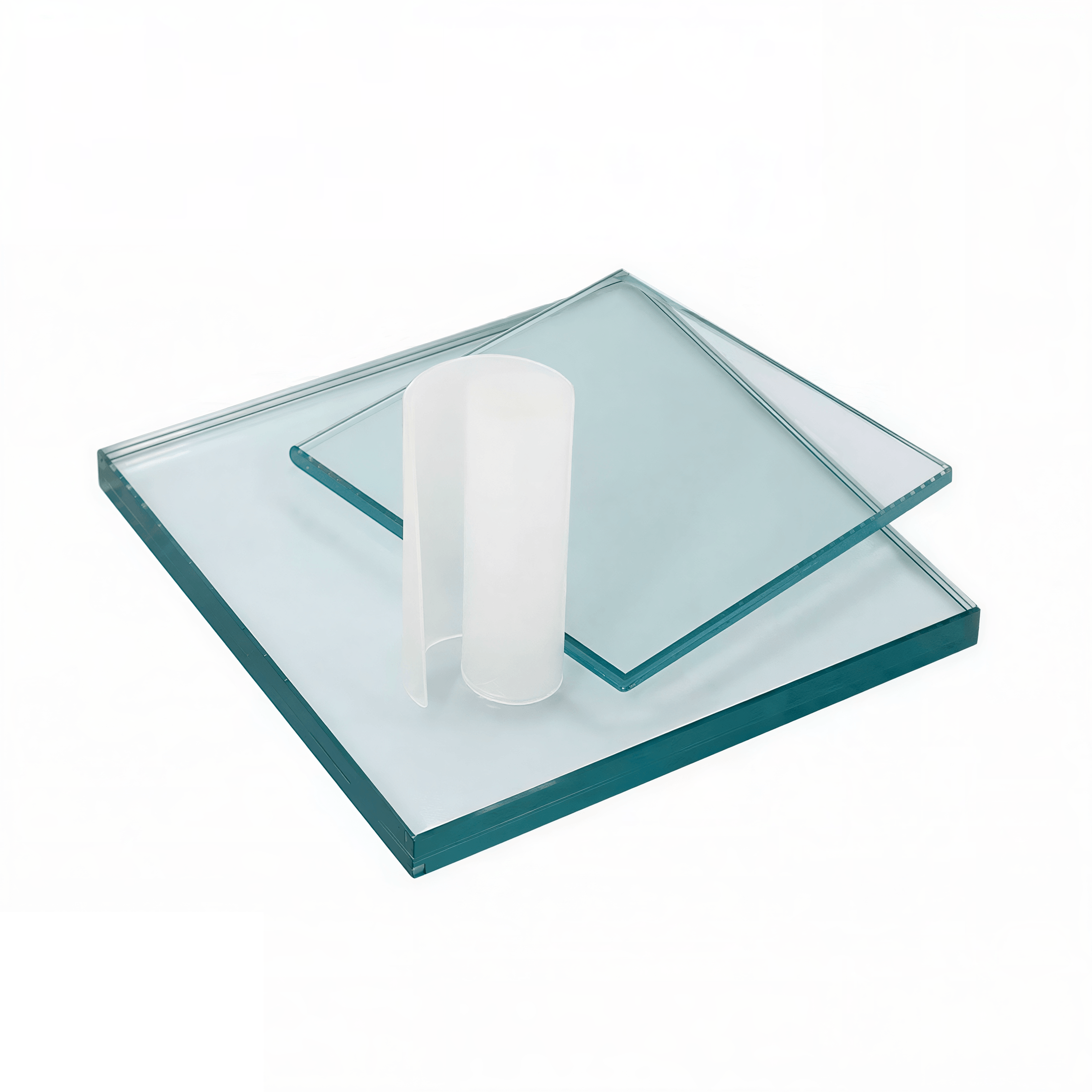

Trosifol® SC Monolayer Acoustic PVB Interlayer Film for Laminated Glass (Clear)

Trosifol® SC Monolayer Acoustic PVB Interlayer Film for Laminated Glass (Clear) – 1.52 × 2500 mm × 100 m

Model Number: 106106677

Trosifol® SC Monolayer Acoustic PVB Interlayer Film is a premium sound-control interlayer developed by Kuraray for laminated safety glass applications. Designed to significantly reduce noise transmission while maintaining excellent optical clarity, it delivers superior acoustic comfort in residential, commercial, and public buildings. The interlayer features high adhesion to glass, outstanding transparency, UV stability, and long-term durability. Suitable for use with annealed, heat-strengthened, and fully tempered glass, it is an ideal solution for facades, windows, skylights, partitions, airports, hotels, offices, hospitals, and other environments where noise reduction and safety are essential.

Technical details

Model No.PVBTSC15251
Barcode No.106106677
BrandKuraray Trosifol
Product TypeTrosifol® SC Monolayer Acoustic PVB Interlayer Film for Laminated Glass
MaterialPolyvinyl Butyral (PVB)
PVB TypeAcoustic Control
ColorClear
Thickness1.52 mm
Width2500 mm
Length100 m
AppearanceClear, optically transparent
Solar Absorption19–21%
Density1.06 g/cm³
Thermal Conductivity0.20 W/mK
Thermal Expansion Coefficient2.0 × 10⁻⁴ 1/K
Specific Heat Capacity1.9 J/g·K
Tensile Strength (EN ISO 527)>13 N/mm²
Elongation at Break>300%
Light Transmission88%
Adhesive StrengthHigh adhesion to glass
Acoustic PerformanceExcellent
Sound Reduction35–47 Rw dB (depending on glass configuration)
Optical PerformanceExcellent clarity
Ball Drop PerformanceP1A
ApplicationAcoustic Laminated Safety Glass / Facades / Windows / Partitions / Commercial Buildings / Residential Buildings
Country of OriginGermany

Description

Trosifol® SC Monolayer Acoustic PVB Interlayer Film is a high-performance laminated glass interlayer designed to deliver superior sound insulation in architectural glazing systems. Developed by Kuraray, it reduces airborne noise transmission while maintaining excellent optical clarity and safety performance. The interlayer provides strong adhesion to glass, excellent post-breakage behavior, UV resistance, and long-term durability. It is specifically engineered for use in environments where acoustic comfort is essential, such as residential buildings, commercial complexes, airports, hotels, hospitals, and urban infrastructure projects.

Spec & Technical Data

Trosifol® SC Monolayer Acoustic PVB is a safety-grade polyvinyl butyral interlayer available in 0.76 mm and 1.52 mm thicknesses. It features a density of 1.06 g/cm³, solar absorption of 19–21% depending on thickness, thermal conductivity of 0.20 W/mK, thermal expansion coefficient of 2.0 × 10⁻⁴ 1/K, and specific heat capacity of 1.9 J/g·K. It delivers tensile strength greater than 13 N/mm² (EN ISO 527) and elongation at break above 300%, ensuring flexibility and impact resistance. The interlayer provides excellent acoustic performance with sound reduction of approximately 35–47 dB (Rw) depending on glass build-up, high optical clarity, and P1A ball drop safety rating. It is UV-stabilized and suitable for laminated safety glass in demanding acoustic environments.
