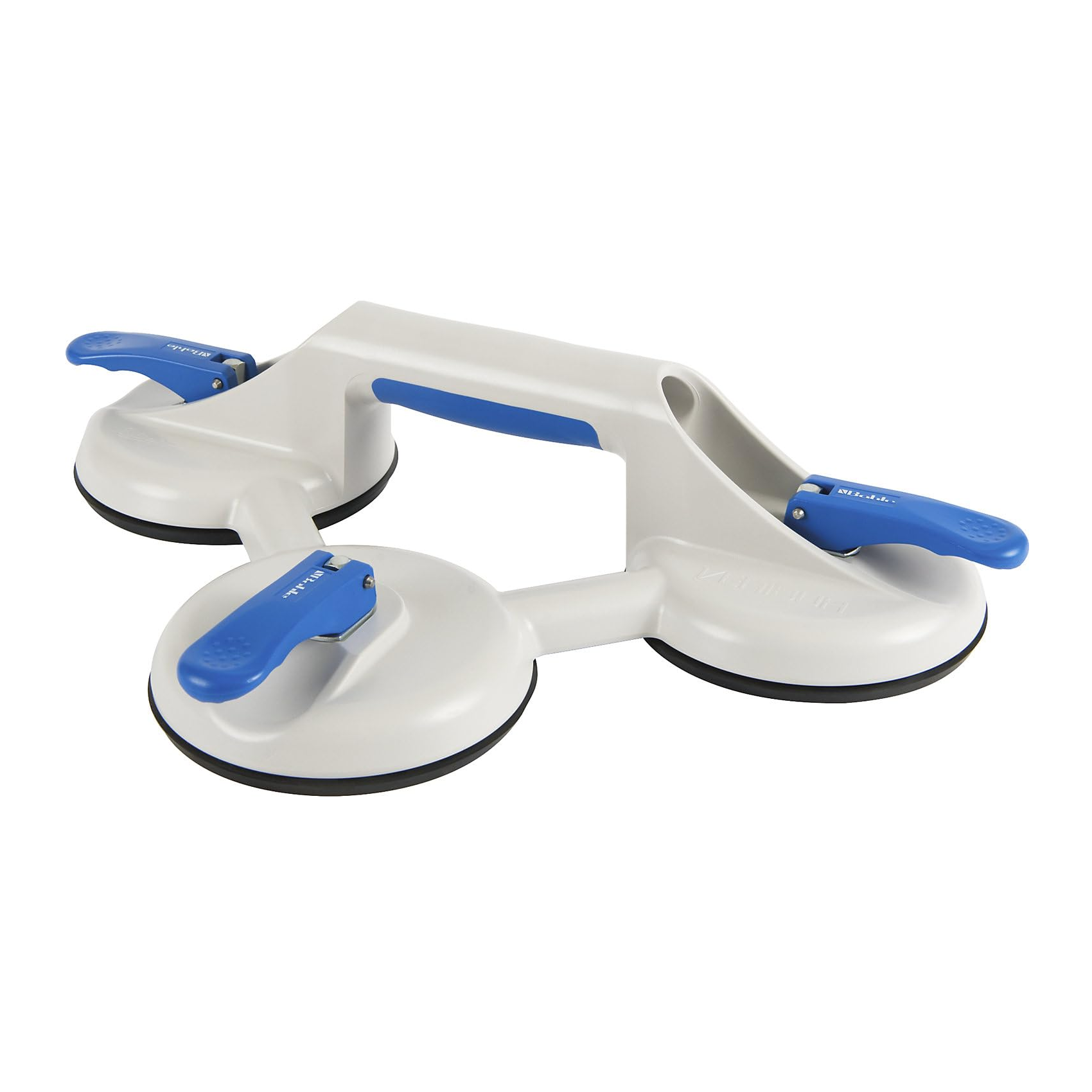

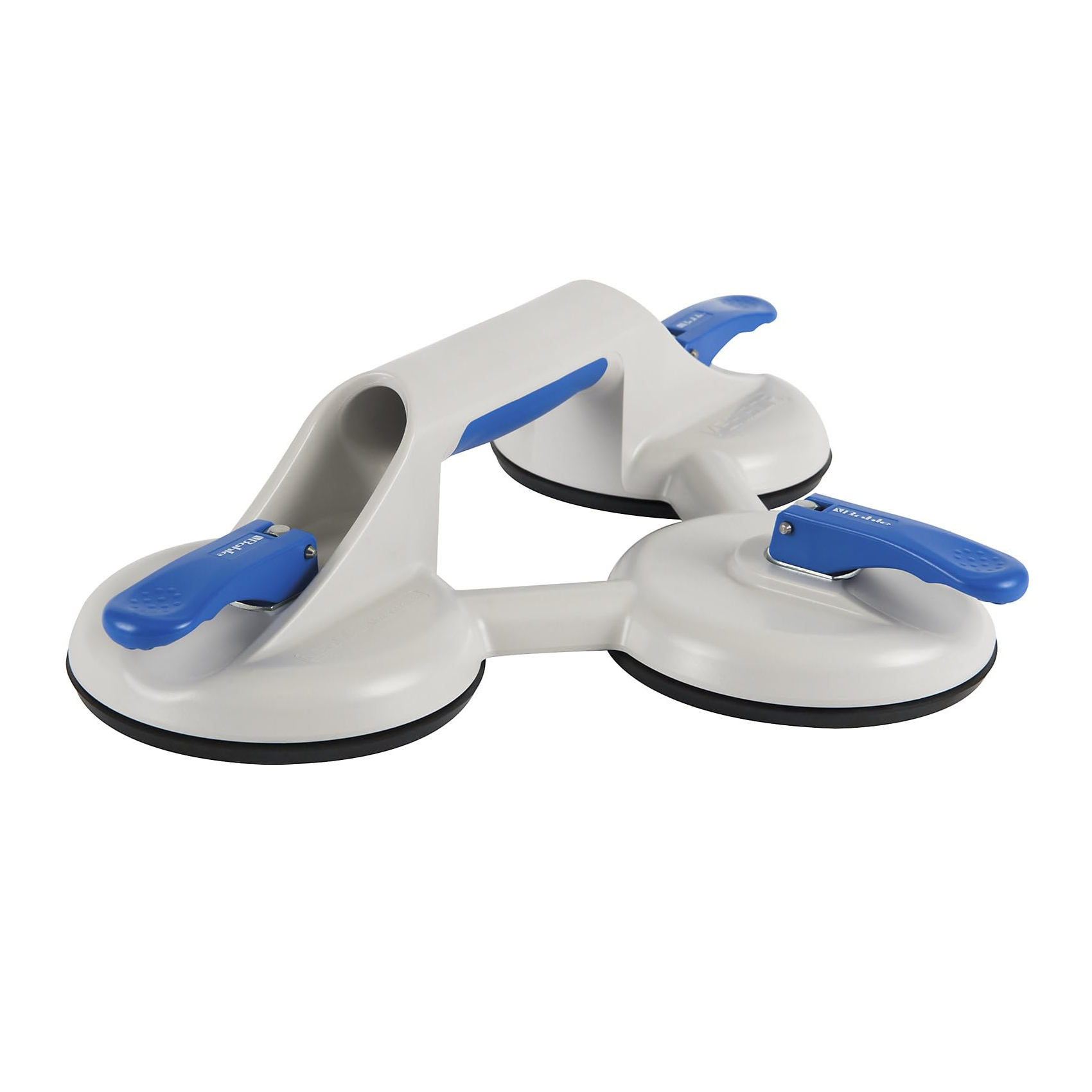

Bohle Veribor® BO 603.1G 3-Cup Plastic Suction Lifter – 90 kg
The Bohle Veribor® BO 603.1G is a 3-cup manual suction lifter engineered for lifting, carrying, and holding heavy materials with flat, gas-tight surfaces. Manufactured from robust, high-grade plastic, it is equipped with three 120 mm rubber pads in proven Bohle quality that deliver a safe load capacity of 90 kg with a two-fold safety factor. It features ergonomic toggle levers with wide surfaces for optimal force transmission, combined with a large non-slip handle area for secure holding and carrying comfort.
Technical details
- BrandVeribor® by Bohle
- ModelBO 603.1G
- Product Type3-Cup Lever Suction Lifter
- Body MaterialRobust Plastic
- Suction Pad Diameter120 mm
- Material Suction PadRubber (SBR)
- Number of Suction Cups3
- Maximum Safe Load Capacity90 kg
- Lifting DirectionParallel
- Vacuum GenerationLever (Toggle Levers)
- Suitable SurfacesFlat, gas-tight surfaces (Glass, Metal, Plastic, Coated wood)
- Environmental StandardFree from carcinogenic hydrocarbon compounds (PAH)
- Replacement Pad ModelBO 614.3G
- Usage EnvironmentIndustrial Glazing Workshops, Construction Job Sites & Heavy Glazing Operations
- Country of OriginGermany (DE)
Description
The Bohle Veribor® BO 603.1G suction lifter delivers a secure hold and exceptional carrying comfort for moving large glass panes and smooth structural components. The ergonomic toggle levers are designed with wide surface areas that maximize power transmission when drawing vacuum, requiring minimal physical effort from the operator. Its high-grade SBR rubber suction pads remain dimensionally stable while adapting smoothly to the surface under vacuum. Compared to standard 2-cup plastic lifters, this 3-cup model provides an 80% higher load capacity, reliably carrying up to 90 kg across industrial glazing workflows.
Spec & Technical Data

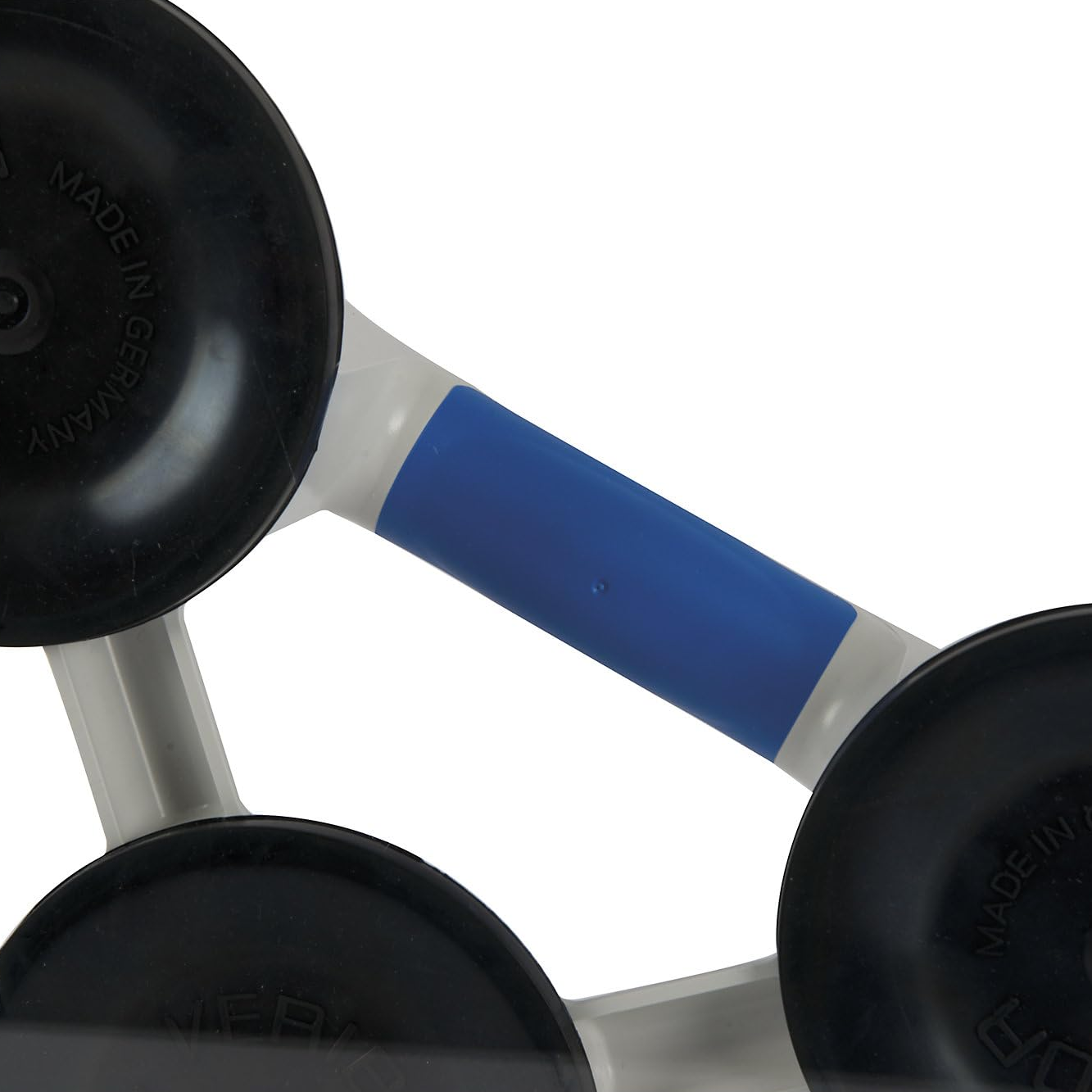

Constructed from impact-resistant polymer, the Bohle Veribor® BO 603.1G is equipped with three 120 mm diameter rubber suction discs rated for a 90 kg parallel safe working load limit. The suction pads are formulated from PAH-free rubber (SBR) to ensure environmentally safe handling, continuous flexibility, and high resistance to wear. Made in Germany, the lifter is engineered with an integrated non-slip handle coating and precision lever geometry to guarantee a stable vacuum hold on all flat, airtight sheet materials.
