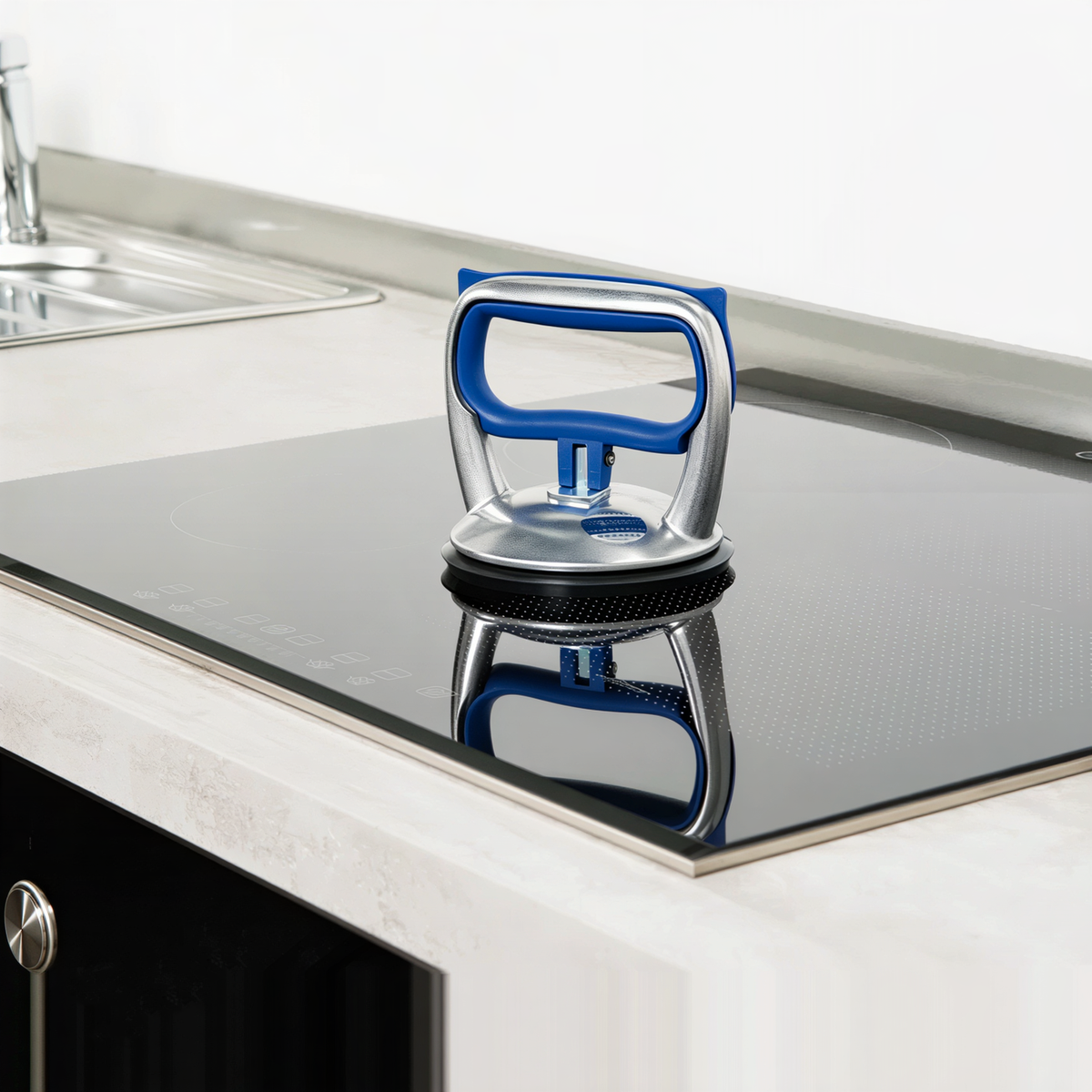

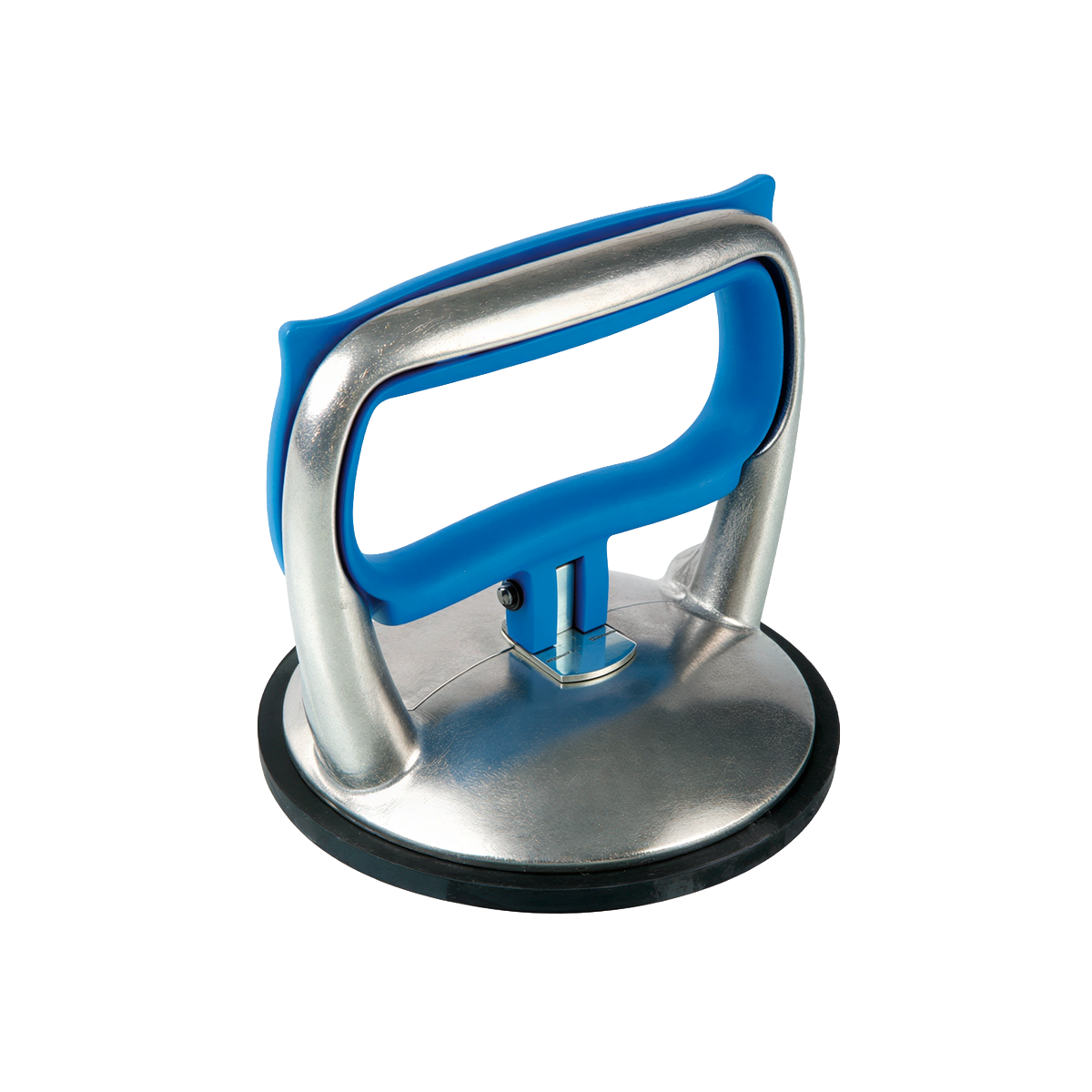

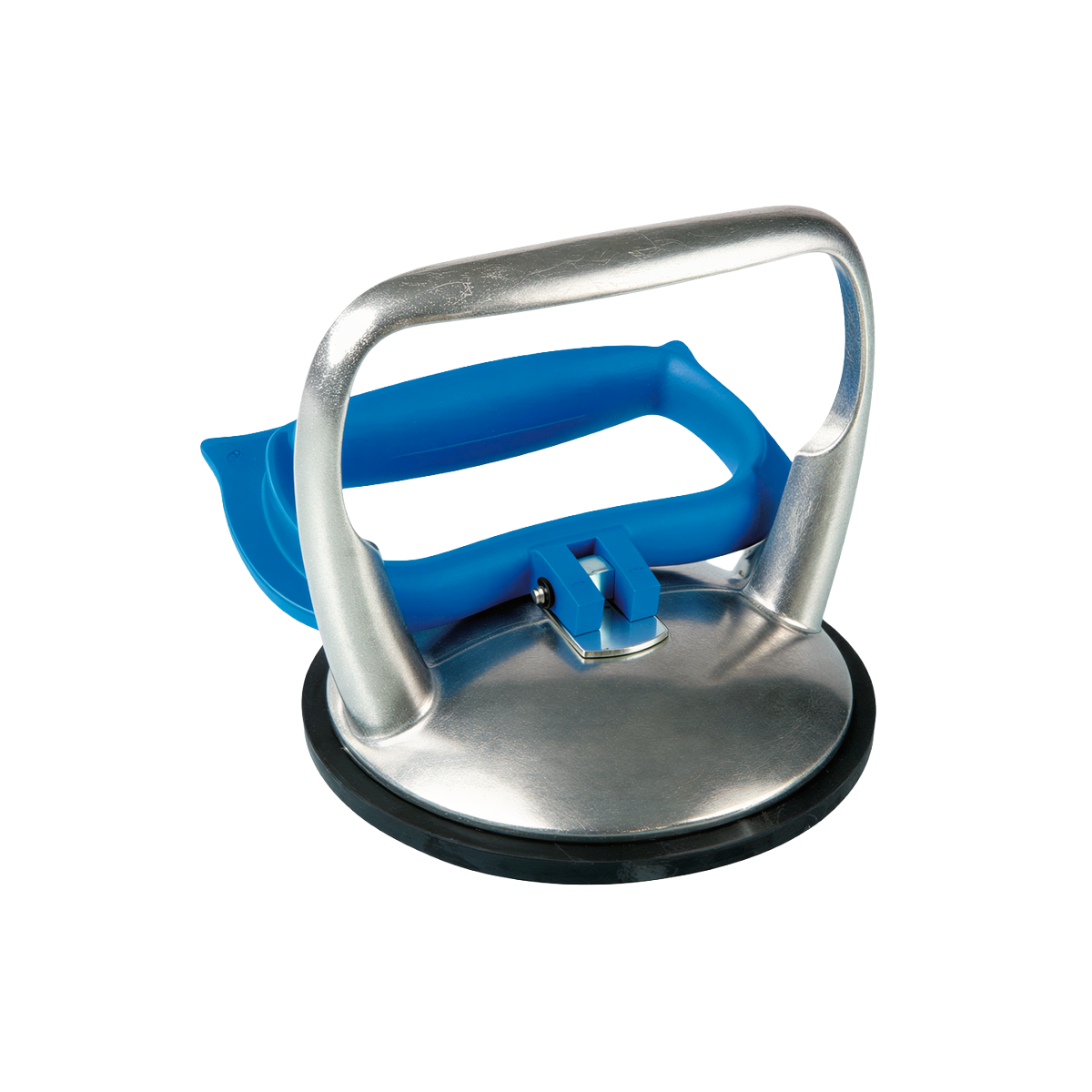

Bohle Veribor® BO 600.0BL 1-Cup Aluminium Suction Lifter – 30 kg
The Bohle Veribor® BO 600.0BL is a compact 1-cup manual suction lifter engineered for the safe handling of materials with flat, gas-tight surfaces. Constructed with a high-quality aluminium body and a movable plastic handle, it features a 120 mm rubber suction pad that delivers a safe load capacity of 30 kg with a double safety factor. The geometry of the fixed handle and the movable plastic handle offers two options for uncomplicated detachment, which are ideally suited to the individual application.
Technical details
- BrandVeribor® by Bohle
- ModelBO 600.0BL
- Product Type1-Cup Lever Suction Lifter
- Body MaterialAluminium
- Handle MaterialPlastic
- Suction Pad Diameter120 mm
- Material Suction PadRubber
- Number of Suction Cups1
- Maximum Safe Load Capacity30 kg
- Transport DirectionVertical
- Type of Vacuum GenerationLever
- Suitable SurfacesFlat surfaces
- Environmental StandardFree from carcinogenic hydrocarbon compounds (PAH)
- Replacement Pad ModelBO 610.0BL
- Country of OriginGermany (DE)
Description
The Bohle Veribor® BO 600.0BL aluminium suction lifter combines lightweight handling with maximum functional efficiency for gripping flat panels. To establish vacuum pressure, simply attach the suction pad and close the handle with one hand when pressing it onto the surface. Made in Germany, it offers high safety and ergonomic comfort. There is a larger gap in the middle so that after use the movable plastic handle can simply be pushed away from the fixed handle with the thumb, ensuring quick and effective release.
Spec & Technical Data
Built for durability and fast operation, the Bohle Veribor® BO 600.0BL features a robust aluminium frame equipped with a single 120 mm rubber suction disc. The lifter is rated for a 30 kg vertical load capacity and utilizes a lever-action mechanism. Furthermore, there are two release aids on the outer edges of the movable plastic handle, which can also be easily pushed away with the thumb for release. The rubber pad is PAH-free, making it a reliable tool for professional, safe use across standard operating conditions.
