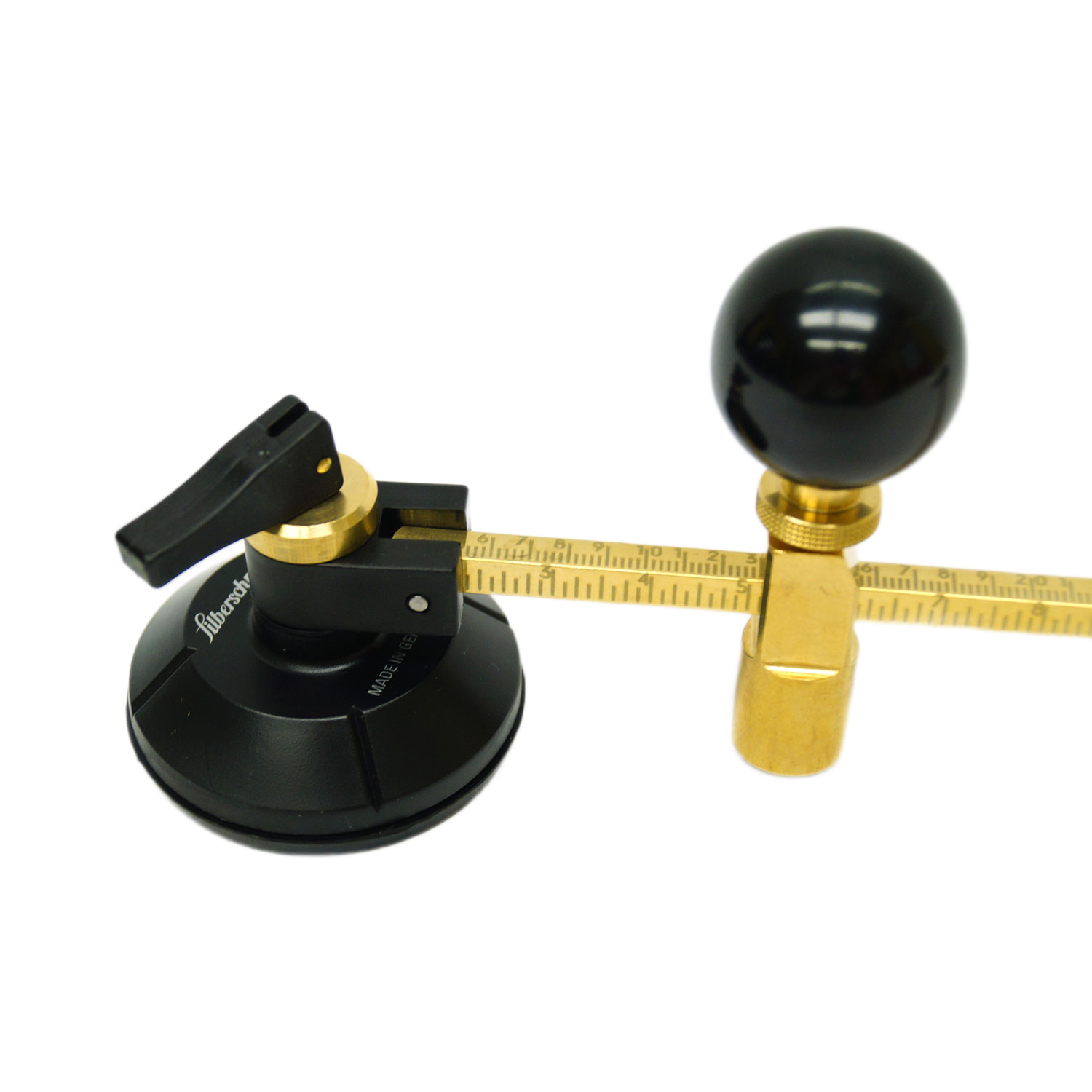

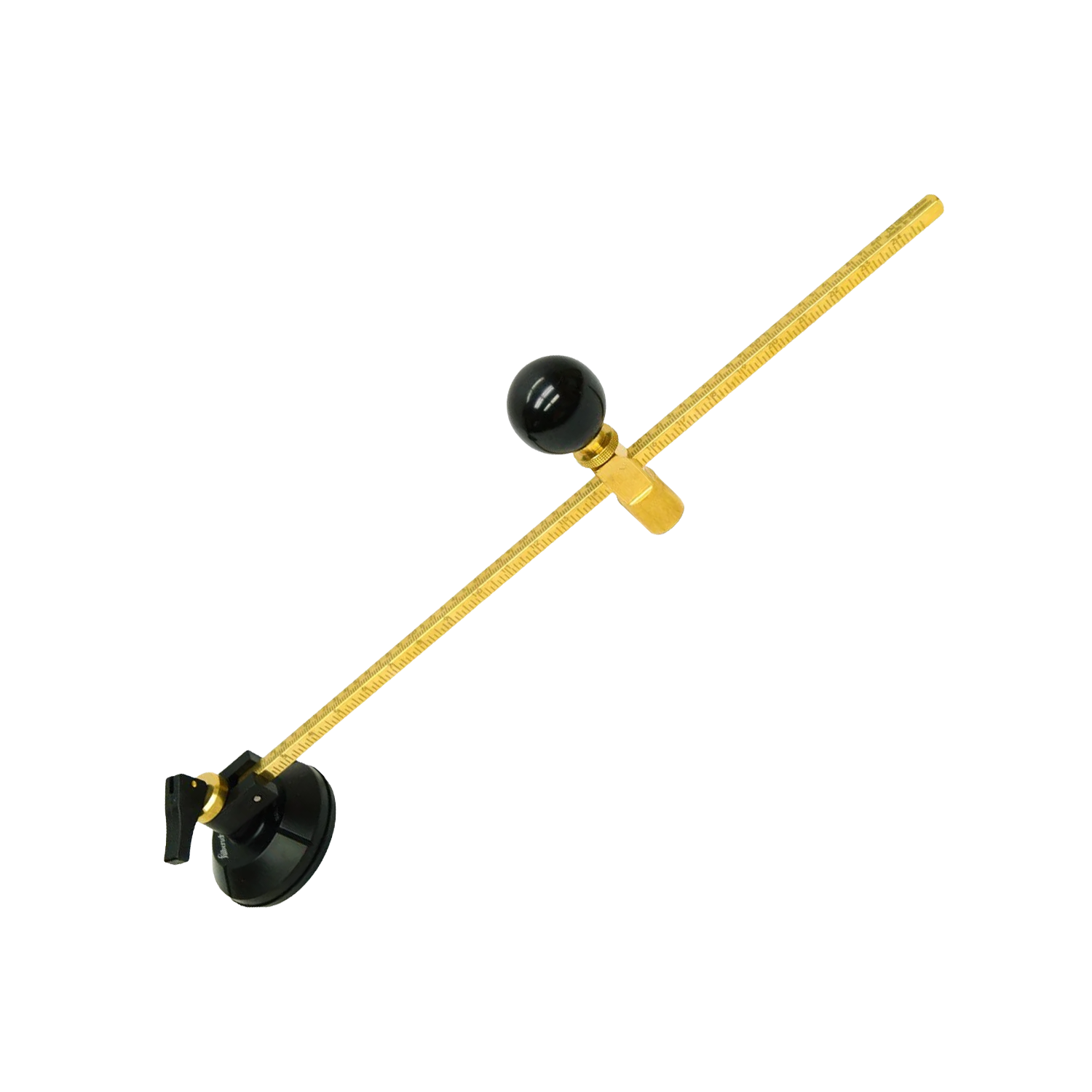

Bohle Silberschnitt® BO 511.0 Manual Circle Glass Cutter – 60 cm
The Bohle Silberschnitt® BO 511.0 is a professional-grade manual circular glass cutter designed for precision scoring of flawless circles up to 60 cm (600 mm) in diameter. Manufactured in Germany, it features a high-quality metal scale and a replaceable six-wheel cutting turret made of premium steel. The cutter incorporates a specialized 130-degree cutting edge angle with 4.5 mm diameter wheels, making it highly effective for cutting float glass, coloured glass, and ornamental glass ranging from 3 mm to 6 mm in thickness. Its secure suction cup base and smooth rotation ensure excellent breakage quality, even at the minimum radius of 72 mm, making it an indispensable tool for glaziers.
Technical details
- BrandSilberschnitt® by Bohle
- ModelBO 511.0
- Product TypeManual Circle Glass Cutter
- MaterialMetal (Handle/Scale), Steel (Cutting Wheels)
- Wheel Diameter4.5 mm
- Cutting Edge Angle130°
- Maximum Cutting Diameter60 cm (600 mm)
- Minimum Cutting Diameter72 mm
- Suitable Glass Thickness3 mm, 4 mm, 5 mm, 6 mm
- Compatible Glass TypesFloat glass, Coloured glass, Ornamental glass
- Number of Wheels6-Wheel Turret
- Package Contents1 Piece
- Country of OriginGermany (DE)
Description

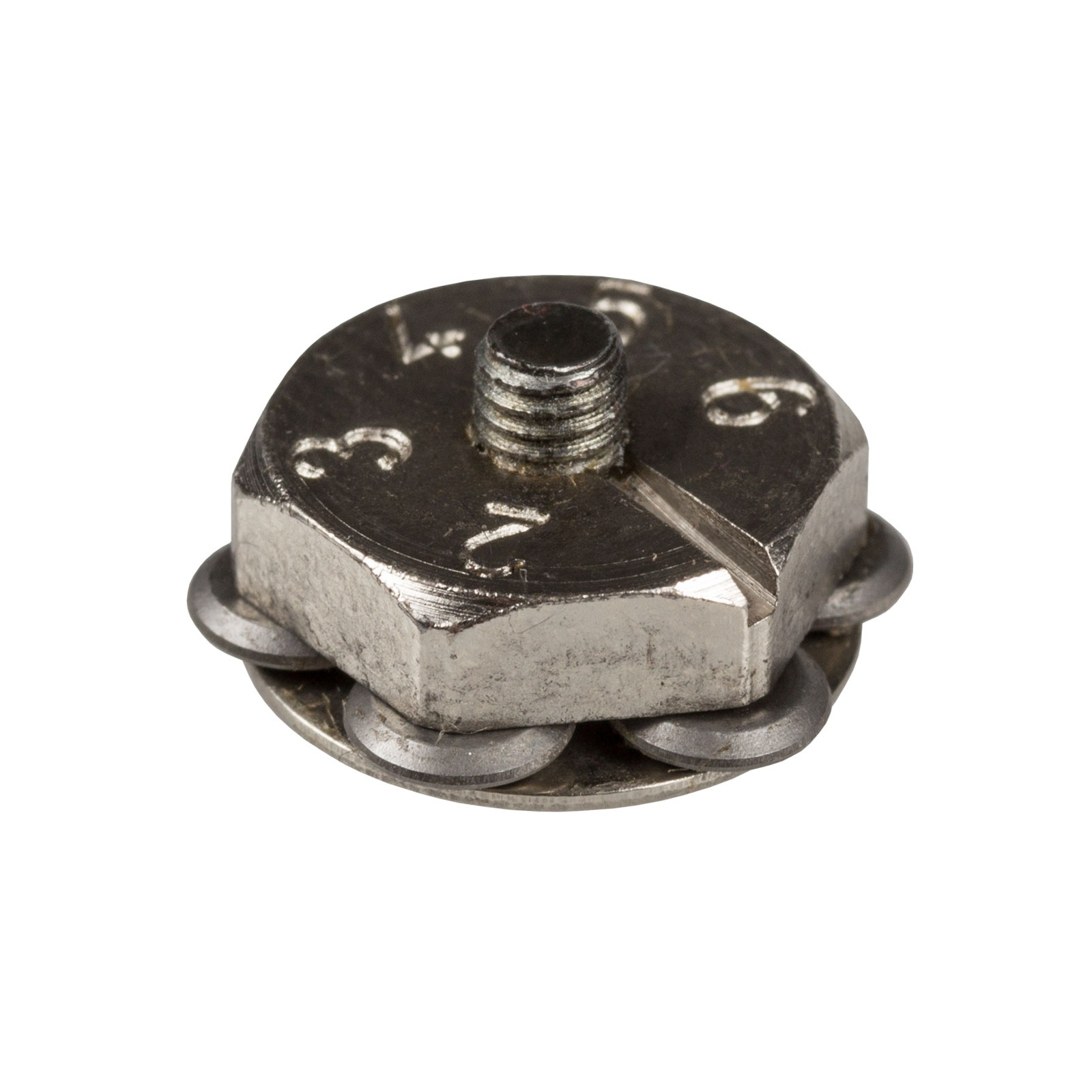

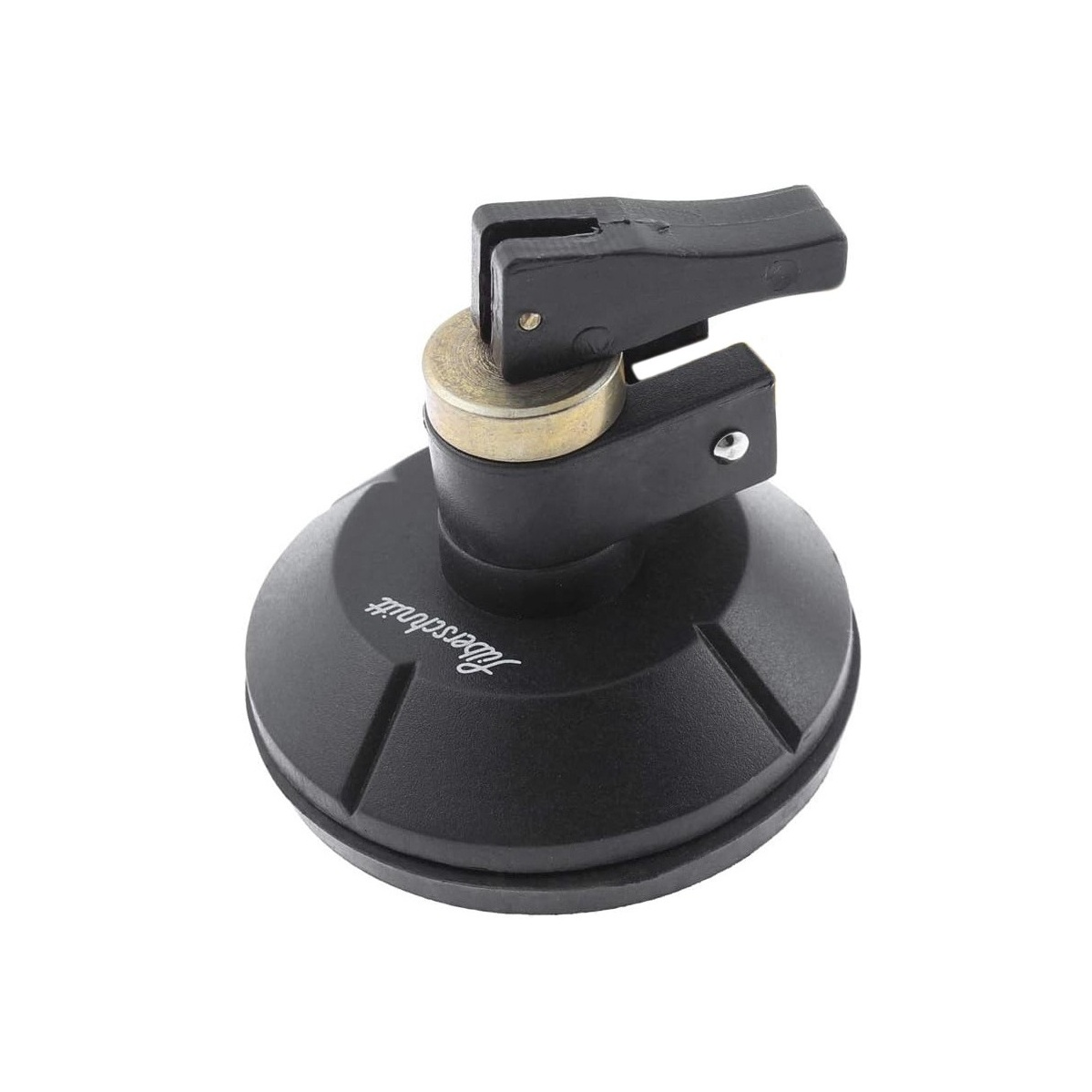

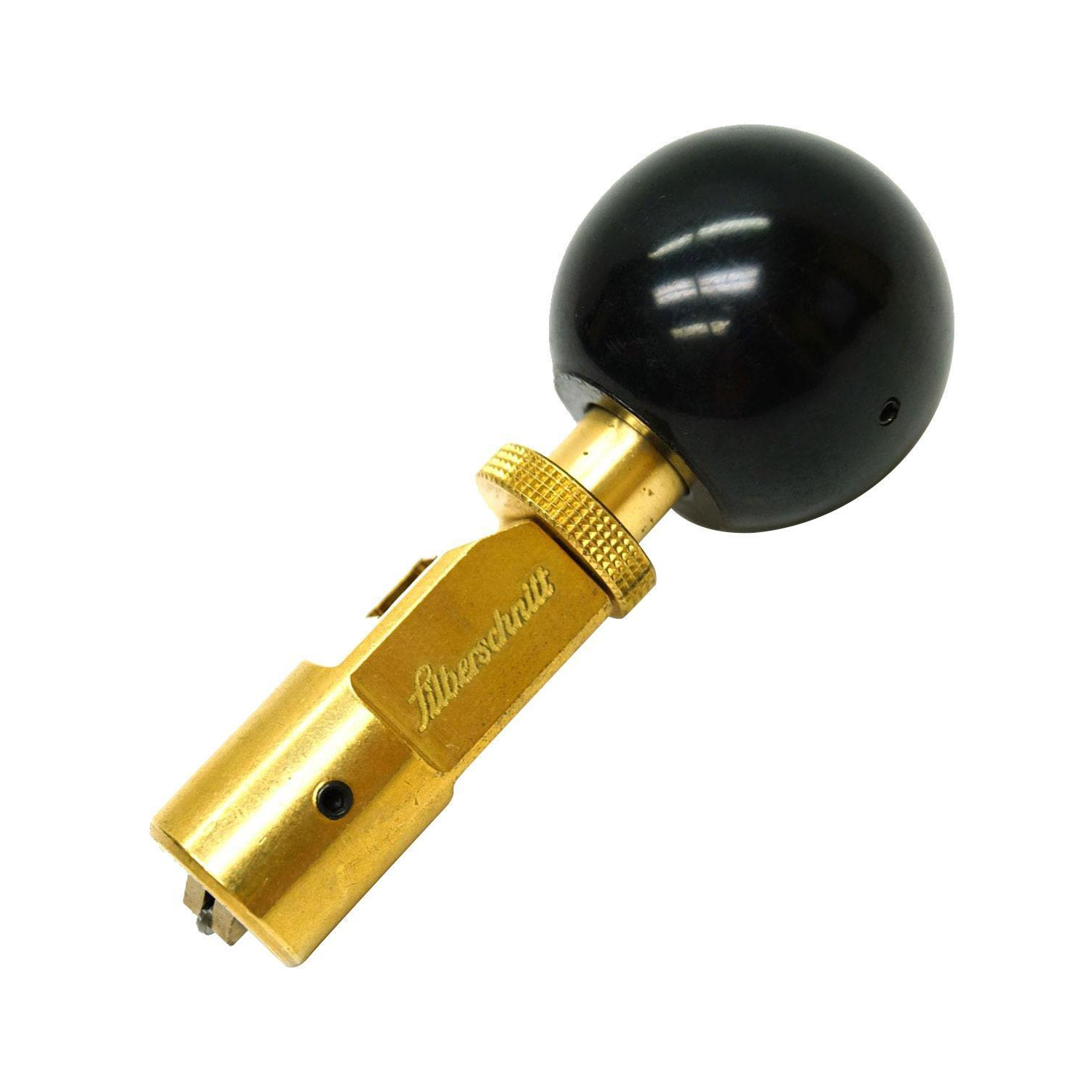

The Bohle Silberschnitt® BO 511.0 manual circle cutter is an essential workshop tool engineered to deliver superior breakage quality for curved and circular glass cuts. Equipped with a robust vacuum suction cup for secure anchoring, the cutter features a smoothly rotating metal arm that allows for precise scoring up to a 60 cm diameter. The integrated cutting turret houses six easily interchangeable 4.5 mm steel wheels, significantly extending the lifespan of the tool and ensuring continuous workflow during demanding glazing projects.
Spec & Technical Data
Built to exacting German engineering standards, the BO 511.0 circle cutter is meticulously calibrated for processing 3 mm to 6 mm thick standard and ornamental glass. The 130° steel cutting wheels, featuring a 4.5 mm diameter, generate optimal surface tension, producing clean edges down to a tight minimum diameter of 72 mm. Both the cutting turret and the individual wheels can be rapidly replaced using standard Silberschnitt spare parts. This user-friendly, high-precision instrument contains no carcinogenic hydrocarbon compounds (PAH-free) and provides reliable long-term performance.
