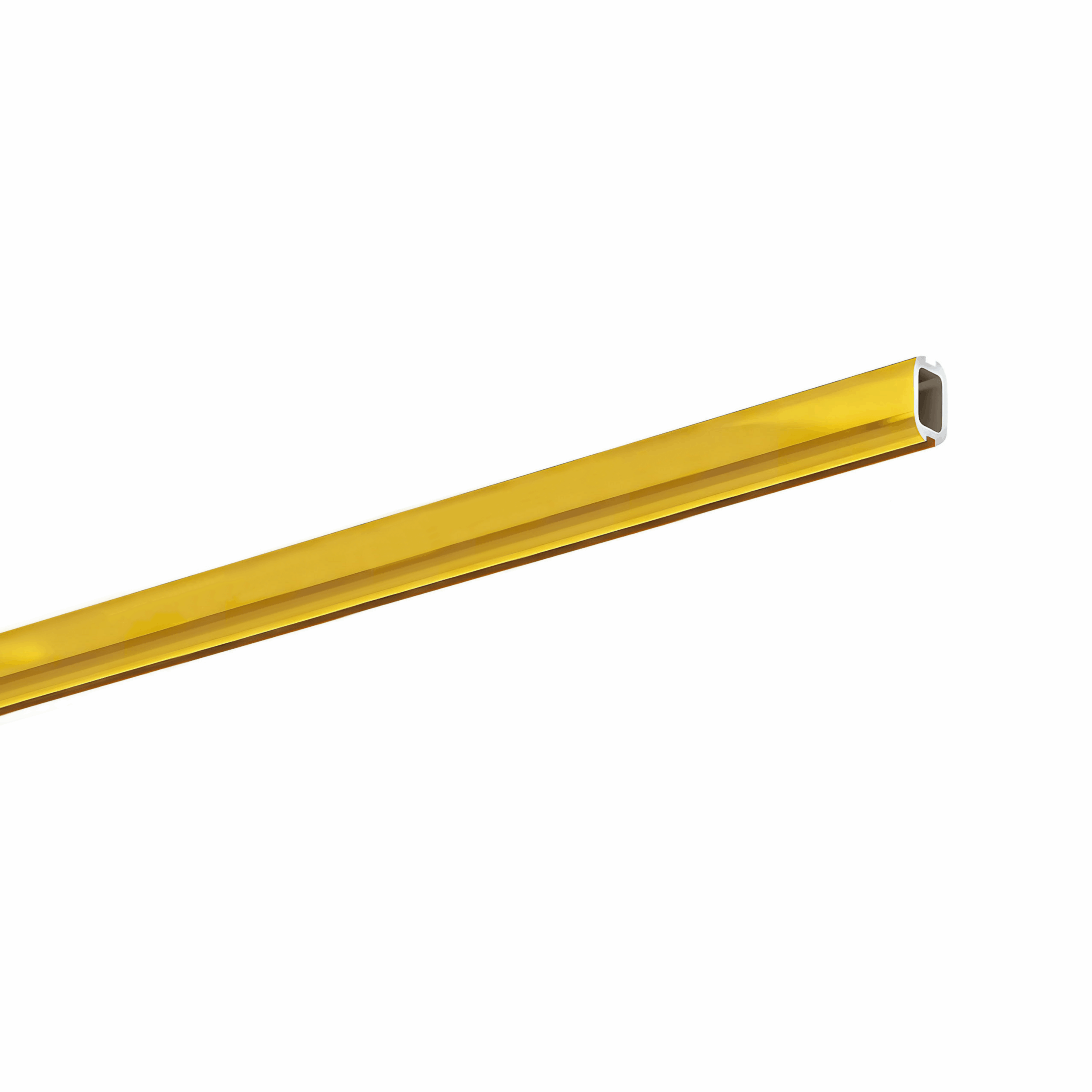

AL7® Germanella T Georgian Bar (3m) – 9×5.5 mm

Model Number: 100103273

Germanella T Georgian Bar is a lightweight decorative aluminum section bar designed for insulated glass unit (IGU) applications. It provides an elegant grid appearance for glazing systems and is widely used in architectural window designs requiring aesthetic internal divisions.

Technical details

Model / Item CodeGermanella T Georgian Bar (3m)
BrandAL7®
MaterialAluminum Alloy 6000 Series
TypeGermanella T Bar
ShapeAccording to Technical Drawings
Profile Dimensions9 × 5.5 mm
Standard Length3 meters
ColorGolden
Surface TreatmentPowder Coating / Anodizing / Mill Finish / Sandblasting / Electrophoresis
ApplicationInsulated Glass Units (IGU)
System UseDecorative Georgian Bar Grid System
Assembly SystemOverlapped punched profiles fixed with clip accessories
DurabilityHigh Strength / Long Service Life
Weather ResistanceUV Resistant / Anti-Aging Material
Thermal StabilitySuitable for IGU Processing Conditions
MaintenanceMaintenance Free
Country of OriginItaly
ManufacturerAL7-Meipa S.r.l.
CertificationAL7® Certified – European Quality Standard

Description

AL7® Germanella T Georgian Bar is an aesthetically refined lightweight profile system with a cross section of 9 × 5.5 mm, designed for decorative IGU applications. It is available in multiple finishes including powder coating, anodizing, sandblasting, and electrophoresis. The system allows punched profiles to be overlapped and fixed using clip accessories, creating a strong yet visually elegant frame structure for modern architectural glazing.

Spec & Technical Data

AL7® Germanella T Georgian Bar is manufactured from 6000 Series Aluminum Alloy and supplied in 3-meter lengths. It supports multiple surface treatments including powder coating, anodizing, sandblasting, and electrophoresis. It is designed for IGU decorative grid systems where profiles are fixed using clip-based accessories. The system ensures durability, precision alignment, and long-term structural stability for architectural glazing applications.
