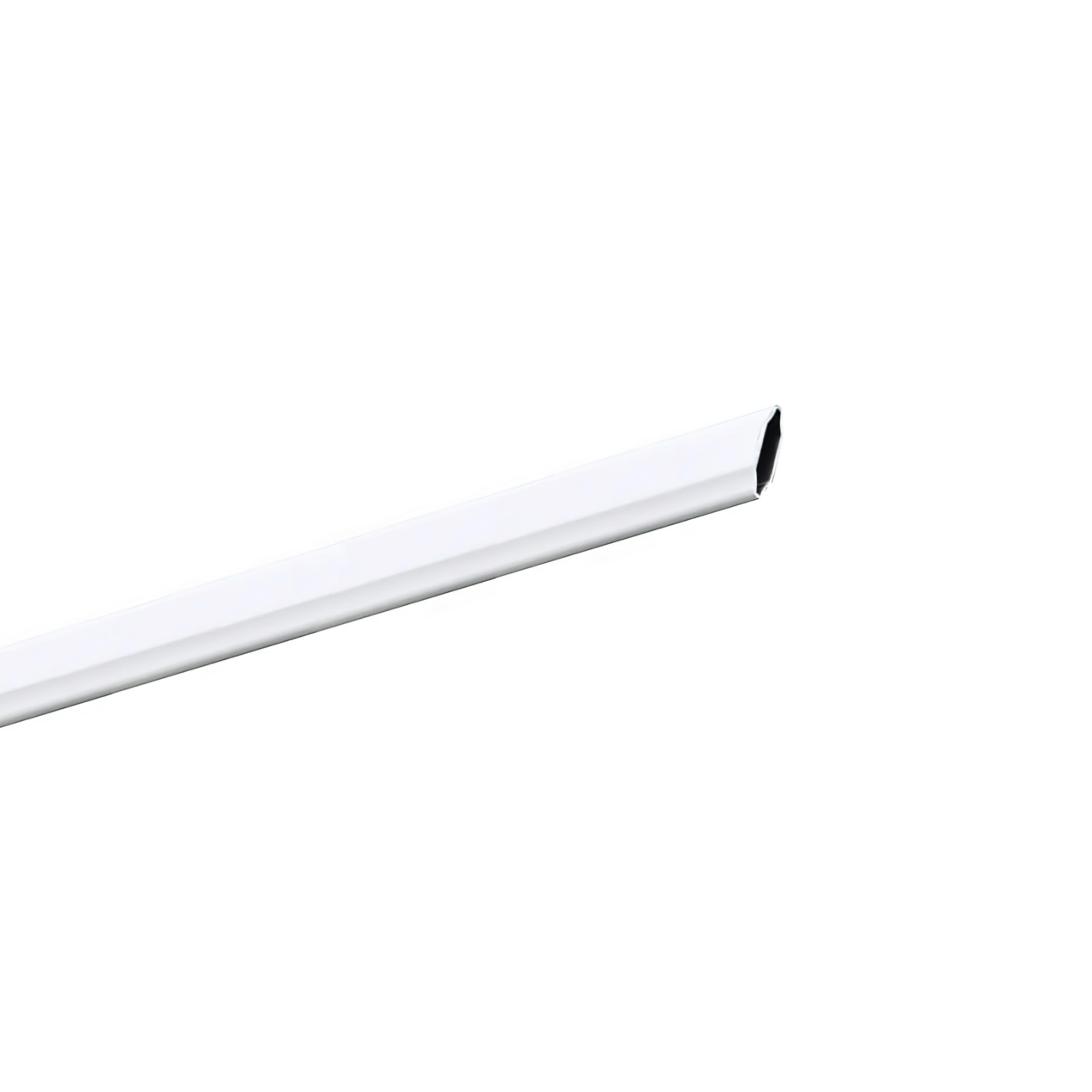

AL7® Classic Victoria Georgian Bar 20×5 mm (White)

Model Number: 100103339

Classic Victoria Georgian Bar (AL7 System) is a premium aluminum decorative spacer system designed for insulating glass units (IGU). The 5×20 mm profile is a slimmer design used to create refined Georgian grid patterns in double and triple glazing, offering a modern aesthetic with high structural precision. Manufactured from high-quality 6000 series aluminum alloy, it ensures excellent durability, corrosion resistance, and long-term dimensional stability. It is widely used in residential, commercial, and architectural glazing applications where elegant design and reliable performance are required.

Technical details

Product NameClassic Victoria Georgian Bar
BrandAL7®
Material GradeAluminum Alloy 6000 Series
Product TypeDecorative Georgian Bar for Insulating Glass Units
Profile Dimensions20 × 5 mm
ShapeAccording to Technical Drawings
ColorWhite
Surface TreatmentPowder Coated White
Alternative FinishesMill Finish / Sandblasting / Anodizing / Electrophoresis
Standard Length3 meters
Packing360 meters / Box
ApplicationInsulating Glass Units (IGU)
CertificationAL7® – MEIPA Srl Certified / CEBTP France Homologation
Country of OriginItaly
ManufacturerAL7 – MEIPA Srl

Description

AL7® Classic Victoria Georgian Bar is a premium decorative aluminum profile used in insulated glass units (IGU) to create refined Victorian-style grid patterns. The 5×20 mm profile features a slimmer and more modern design, offering enhanced aesthetic flexibility while maintaining full compatibility with insulating glass systems. It is ideal for architectural projects requiring elegant and precise decorative glazing layouts. Manufactured from high-quality aluminum alloy, it ensures excellent durability, corrosion resistance, and long-term dimensional stability. The profile provides a clean surface finish, precise fitting inside IG units, and is widely used in residential, commercial, and façade glazing applications where modern elegance and structural performance are required.

Spec & Technical Data

AL7® Classic Victoria Georgian Bar (5×20 mm) is manufactured from 6000 series aluminum alloy through high-precision extrusion to ensure consistent profile geometry and surface quality. It is intended for use in insulating glass unit (IGU) assemblies as a decorative spacer system. The profile is compatible with multiple finishing processes such as powder coating, anodizing, and electrophoresis. It provides corrosion resistance and dimensional stability suitable for long-term performance in architectural IGU applications.
