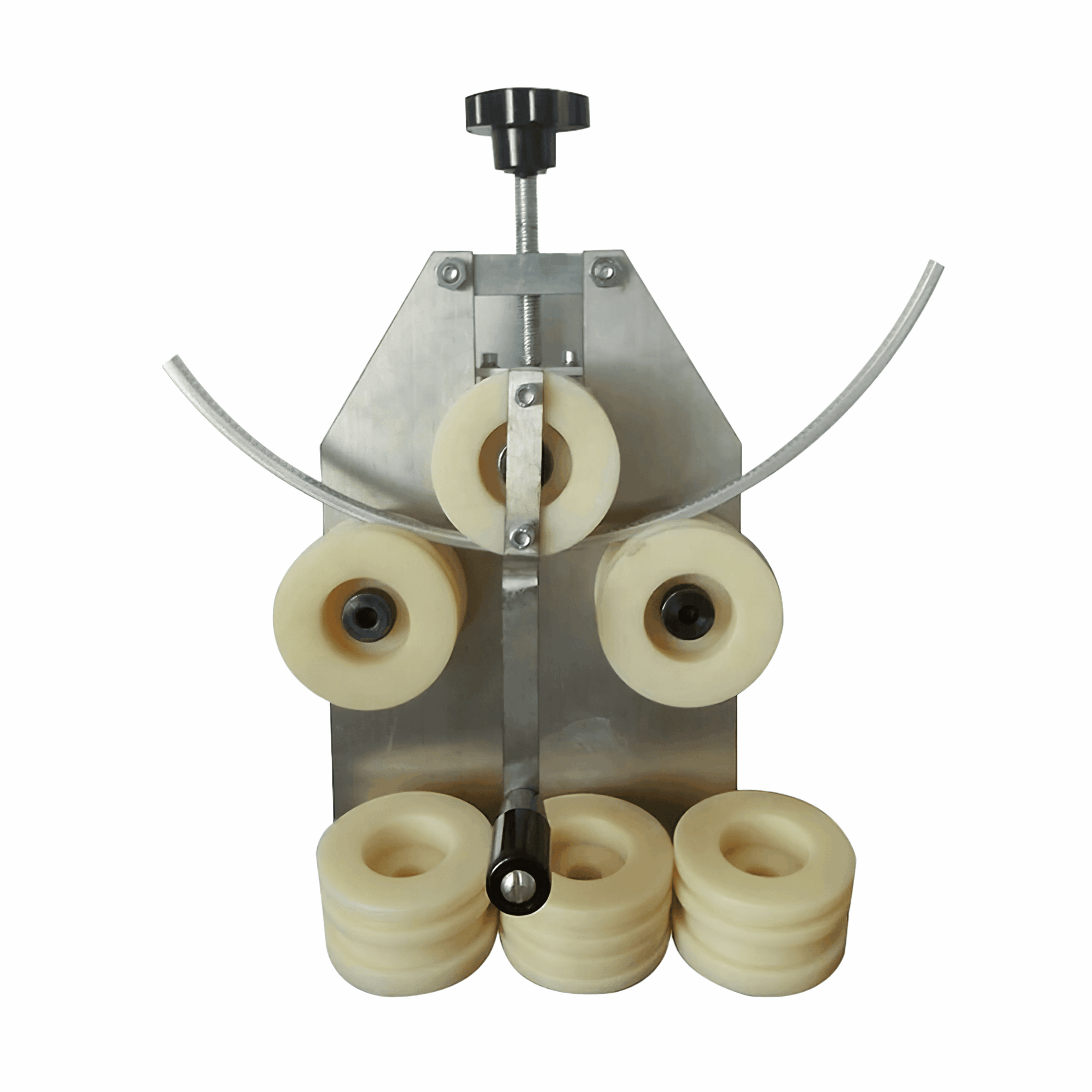

Dorman® Manual Aluminum Spacer Bar Bending Machine
Manual Aluminum Spacer Bar Bender is a specialized tool used in insulating glass (IG) production for bending aluminum spacer bars into precise rectangular, circular, and custom shapes. It is widely used in glazing workshops and IG unit manufacturing to ensure accurate frame formation without damaging the aluminum profile. The manual operation allows smooth and controlled bending, reducing material waste and improving production efficiency. It is suitable for small to medium-scale IG fabrication work where precision and flexibility are required.
Technical details
- BrandDorman®
- Product NameManual Aluminum Spacer Bar Bending Machine
- ApplicationInsulating Glass (IG) Spacer Bar Forming
- Machine StructureStainless Steel Construction
- Compatible MaterialBendable Aluminum Spacer Bars
- Spacer Bar Size Range6–27 mm
- Minimum Bending Radius120 mm
- Maximum Bending Angle360°
- Bending Precision0.2°
- Angle AccuracyStable Manual Control
- Working PrincipleCold Bending Without Heating
- Roller SystemWear-Resistant Precision Rollers
- Mould MaterialABS Polymer
- Material ProtectionProtects Aluminum Spacer Surface During Bending
- Control SystemManual Adjustment System
- Installation MethodBench-Mounted or Fixed Floor Installation
- MountingFixed Mounting Hole
- Maintenance LevelLow-Maintenance Mechanical System
- Machine Dimension500 × 600 × 500 mm
- Machine Weight25 kg
- ColorStainless Steel / White ABS Mould
- Key Selling PointHigh Accuracy
- CertificationCE / ISO
- Country of OriginChina
Description
The Dorman® Manual Aluminum Spacer Bar Bending Machine is designed for forming bendable aluminum spacer bars used in insulating glass (IG) production. It features a durable stainless steel structure, manual mechanical operation, and an ABS polymer mould designed to help protect the spacer surface during bending. The machine supports spacer bar sizes from 6–27 mm, with a minimum bending radius of 120 mm and a maximum bending angle of 360°, making it suitable for professional insulating glass fabrication.
Spec & Technical Data
The Dorman® manual spacer bar bending machine is suitable for bendable aluminum spacer bars from 6–27 mm. It provides a 120 mm minimum bending radius, 360° maximum bending angle, and 0.2° bending precision. The machine features stainless steel construction, wear-resistant precision rollers, an ABS polymer mould, manual adjustment control, and cold bending without heating. It can be bench-mounted or fixed to the floor and has dimensions of 500 × 600 × 500 mm with a weight of 25 kg. The machine is supplied with CE / ISO certification and is designed for insulating glass spacer bar forming applications.
