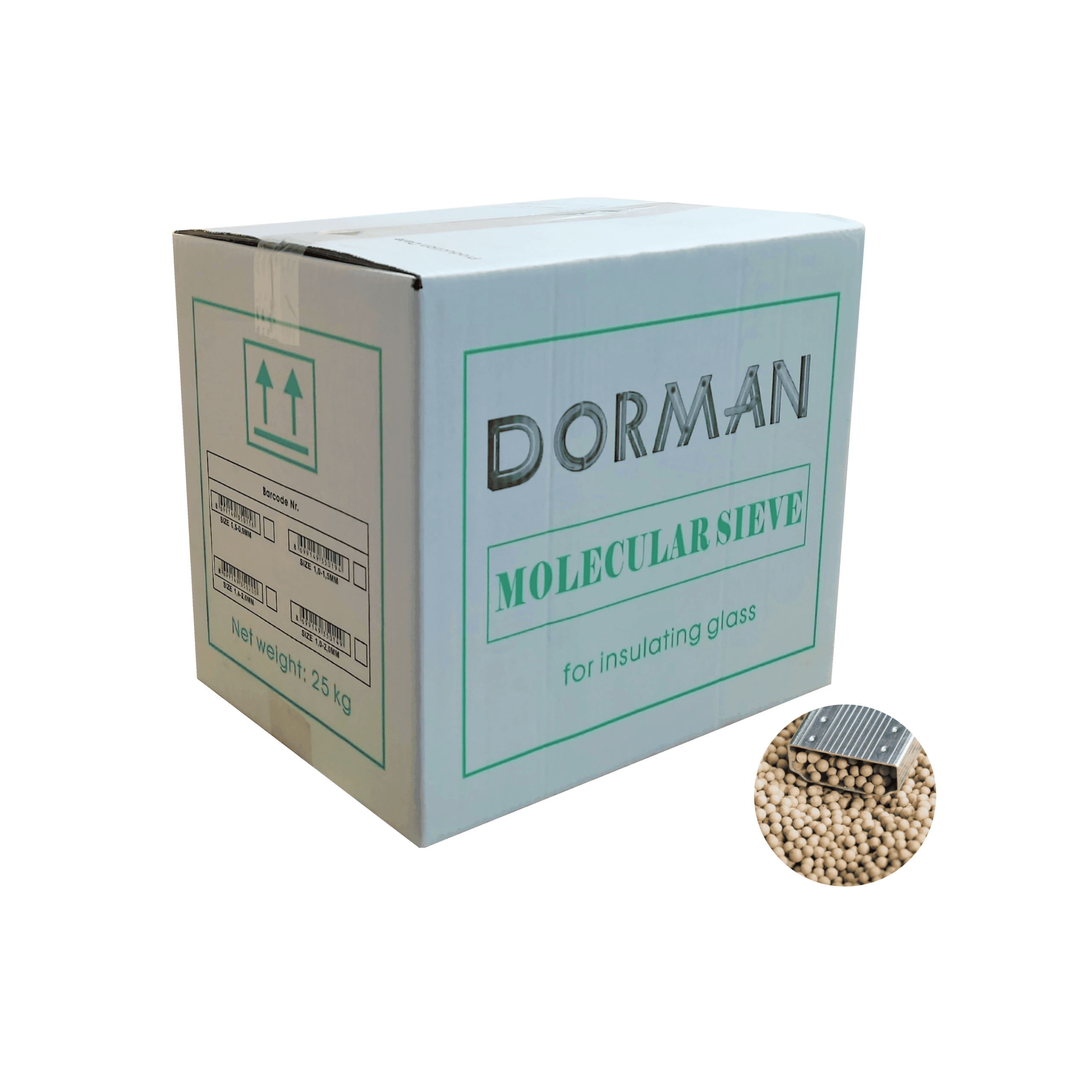

Dorman® IG Molecular Sieves Desiccant (0.5–0.9 mm, 25 kg)

Model Number: 100106484

Dorman® Insulating Glass Molecular Sieve is a high-performance desiccant designed for insulated glass units (IGUs) to ensure effective moisture control and long-term sealing performance. It provides excellent water vapor adsorption with minimal gas adsorption, helping prevent condensation, fogging, and seal failure inside insulated glazing systems. Available in multiple bead sizes for both automated and manual spacer filling applications, it delivers consistent and reliable performance in double and triple glazing systems.

Technical details

Product TypeInsulating Glass Molecular Sieve Desiccant
BrandDorman®
ModelIG Molecular Sieve Desiccant 0.5–0.9 mm
ApplicationInsulated Glass Units (IGUs)
FunctionMoisture Absorption / Dehumidification
Base MaterialPotassium Sodium Aluminum Silicate (Zeolite Type)
ShapeSpherical Beads
Size Range0.5–0.9 mm
ColorLight Beige / Off White
Bulk Density0.74 – 0.80 g/ml
Static Water Absorption≥20%
Crushing Strength≥5 N/piece
Dust Content≤30 ppm
Delta T (10g / 10ml)≥38°C
Equilibrium N₂ Capacity≤0.2%
Dew Point< -73°C
Size Ratio≥98%
Water Content (as shipped)<1.5%
Key Features
Very selective adsorption (high water vapor selectivity)
Low gas adsorption to minimize IGU deflection
Homogeneous, non-separating structure
High stability and long-term performance
Ready-to-use activated desiccant
Performance Properties
High adsorption efficiency, excellent flowability, high surface hardness, stable in automated filling systems
Packaging25 kg cartons / 160 kg drums
Storage ConditionsStore in dry environment at room temperature, away from direct sunlight
Shelf Life24 months
Country of OriginTurkey

Description

Dorman® Insulating Glass Molecular Sieve (0.5–0.9 mm) is a high-performance desiccant designed for insulated glass units (IGUs) to ensure superior moisture control and long-term thermal insulation efficiency. It effectively absorbs water vapor from the sealed cavity while maintaining very low gas adsorption, preventing condensation, fogging, and seal degradation. Its fine, uniform bead size makes it ideal for automated spacer filling systems and precision IGU manufacturing processes.

Spec & Technical Data

Dorman® Molecular Sieve 0.5–0.9 mm is manufactured from high-quality potassium sodium aluminum silicate with a spherical bead structure optimized for machine filling applications. It provides high static water absorption (≥20%) with a bulk density of 0.74–0.80 g/ml and a dew point below -73°C for superior moisture protection. The material maintains excellent selectivity by minimizing gas adsorption (≤0.2%) and ensuring stable IGU performance. With low dust content (≤30 ppm), high size uniformity (≥98%), and residual moisture below 1.5%, it delivers consistent and reliable performance in automated production environments.
