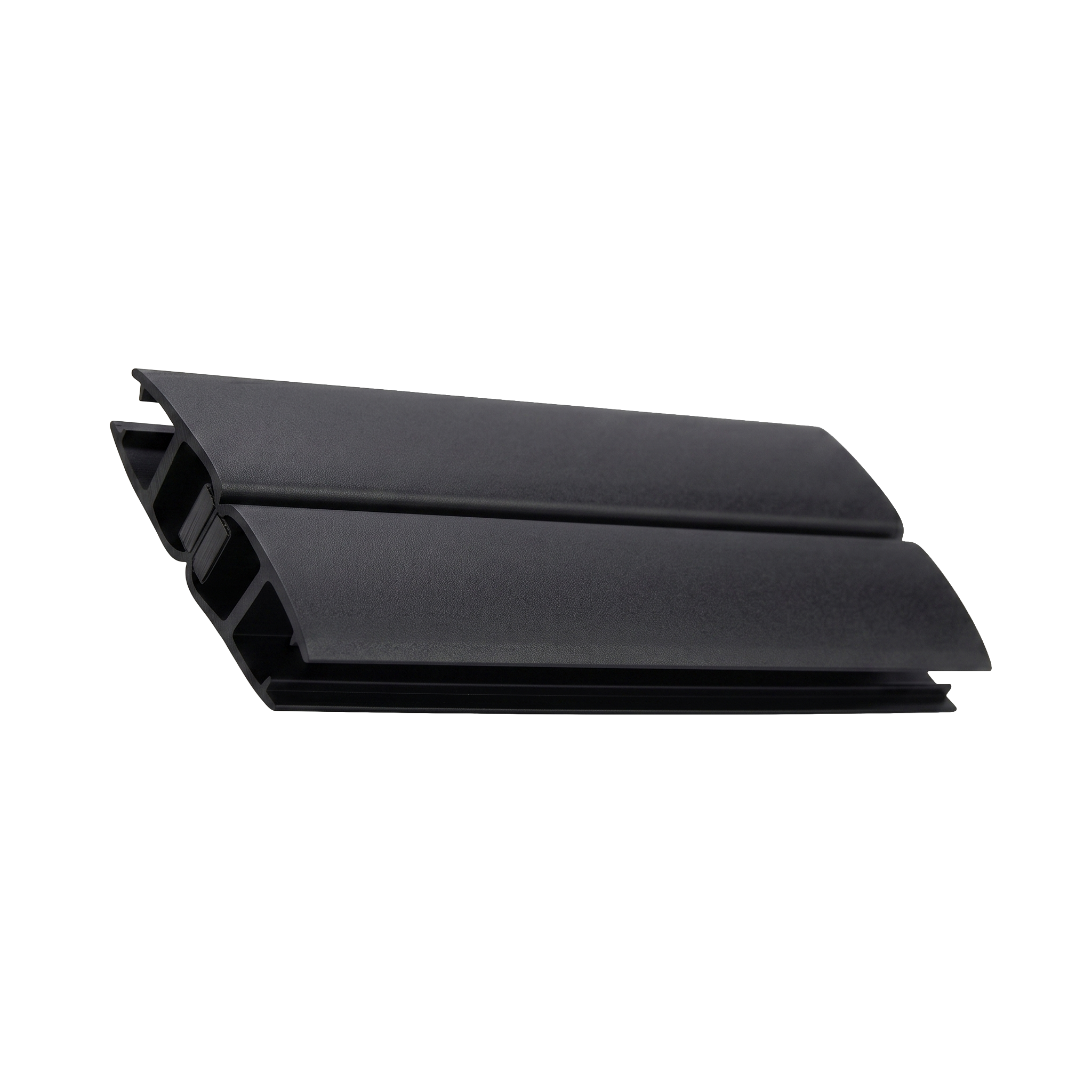

Dorman® DM-SS70910B Black 180° Magnetic Shower Door Seal Pair for 10 mm Glass
The Dorman® DM-SS70910B Black 180° Magnetic Shower Door Seal Pair is designed for the vertical meeting edges of two inline 10 mm frameless glass panels. Each black clip-on profile contains an integrated magnetic strip, allowing the two seals to attract each other and retain the shower door in its closed position. The straight 180° configuration provides aligned glass-to-glass closure while helping reduce water leakage and complementing contemporary black shower hardware.
Technical details
- Product Type180° Magnetic Shower Door Seal Pair
- BrandDorman®
- Model NumberDM-SS70910B
- Channel MaterialRigid PVC
- ColourBlack
- Magnetic InsertIntegrated
- Magnet ColourBlack
- Compatible Glass Thickness10 mm
- Strip Length2.2 m per Profile
- Supplied QuantityTwo Matching Magnetic Profiles
- Connection TypeGlass to Glass
- Closing ConfigurationInline
- Closing Angle180°
- Mounting ChannelU-Shaped Clip-On Channel
- Installation PositionVertical Meeting Edges of the Glass Panels
- Installation MethodDirect Mechanical Clip-On Installation
- Adhesive RequiredNo
- Glass Drilling RequiredNo
- Primary FunctionMagnetic Alignment and Retention of the Closed Shower Door
- Water ProtectionHelps Reduce Water Spray and Leakage
- Additional ProtectionHelps Reduce Drafts and Direct Glass-to-Glass Contact
- Suitable ApplicationsInline Frameless Shower Doors and Glass Enclosures
- Cut-to-SizeYes
- MaintenanceRemovable for Cleaning and Replacement
- Country of OriginChina
- WarrantyAs Per Dorman® Warranty Policy
Description
The Dorman® DM-SS70910B is a matched pair of black magnetic sealing profiles developed for 180° inline glass-to-glass shower-door closures. The rigid PVC channels clip mechanically onto the vertical edges of 10 mm glass, while the integrated magnetic strips align and attract when the door closes. This provides positive door retention and supplementary protection against water spray, drafts, and direct glass-to-glass contact. The profiles require no adhesive or drilling and can be cut to the required installation length.
Spec & Technical Data
The Dorman® DM-SS70910B consists of two black rigid PVC clip-on channels with integrated magnetic inserts, configured for inline glass panels meeting at 180°. The channels are sized for 10 mm glass, and the standard strip length is 2.2 m per profile. The paired magnetic attraction system provides reliable alignment and closure along the vertical meeting edges while helping limit water spray and air passage through the glass-to-glass gap.
