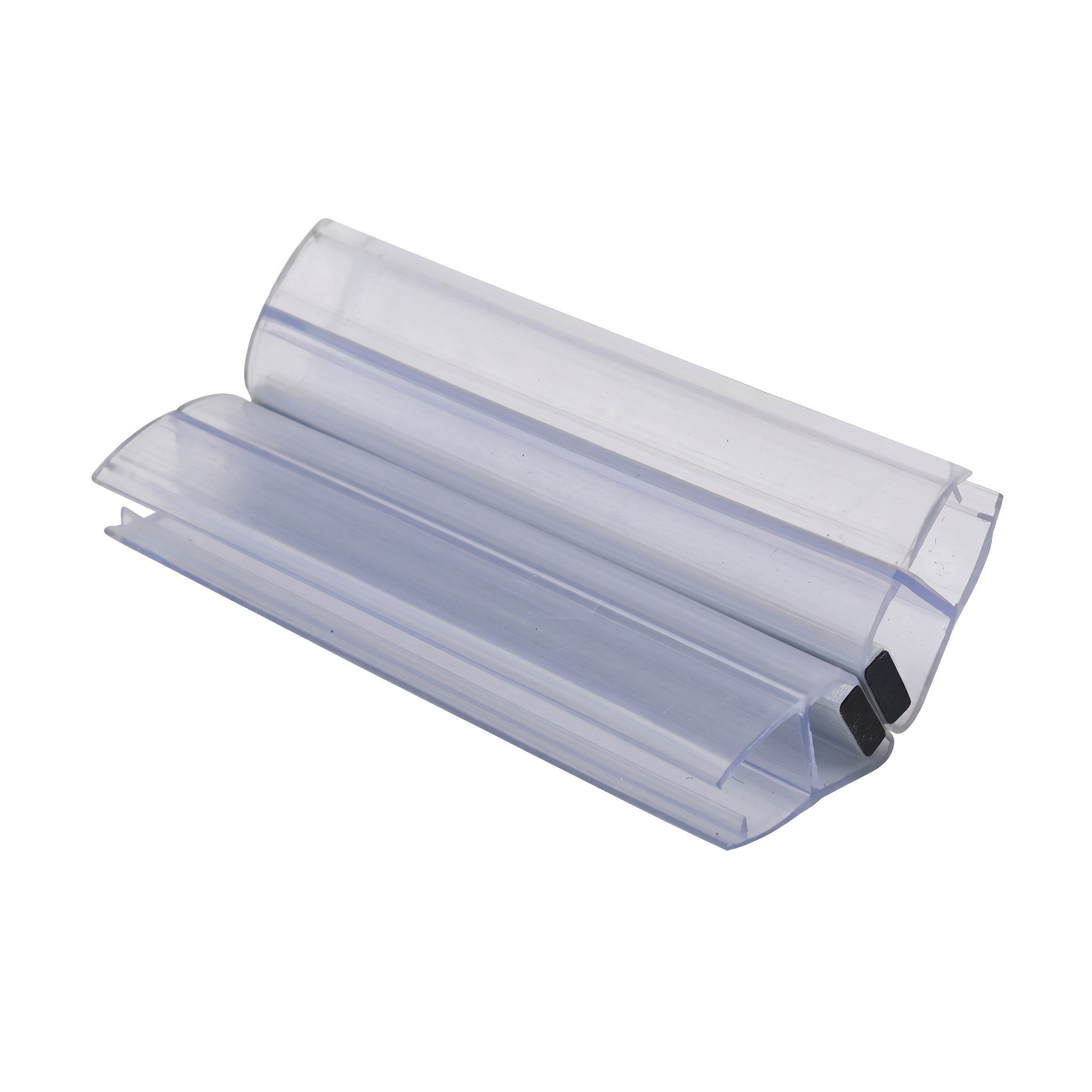

Dorman® DM-SS70812 Transparent 135° Magnetic Shower Door Seal Pair for 12 mm Glass
The Dorman® DM-SS70812 Transparent 135° Magnetic Shower Door Seal Pair is designed for the vertical meeting edges of two 12 mm frameless glass panels arranged at a 135° angle. Each transparent clip-on profile contains an integrated magnetic strip, allowing the two seals to attract each other and hold the shower door in its closed position while helping reduce water leakage through the glass-to-glass gap.
Technical details
- Product Type135° Magnetic Shower Door Seal Pair
- BrandDorman®
- Model NumberDM-SS70812
- Channel MaterialRigid PVC
- ColourTransparent
- Magnetic InsertIntegrated
- Magnet ColourBlack
- Compatible Glass Thickness12 mm
- Strip Length2.2 m per Profile
- Supplied QuantityTwo Matching Magnetic Profiles
- Connection TypeGlass to Glass
- Closing Angle135°
- Mounting ChannelU-Shaped Clip-On Channel
- Installation PositionVertical Meeting Edges of the Glass Panels
- Installation MethodDirect Mechanical Clip-On Installation
- Adhesive RequiredNo
- Glass Drilling RequiredNo
- Primary FunctionMagnetic Alignment and Retention of the Closed Shower Door
- Water ProtectionHelps Reduce Water Spray and Leakage
- Additional ProtectionHelps Reduce Drafts and Direct Glass-to-Glass Contact
- Suitable ApplicationsAngled Frameless Shower Doors and Glass Enclosures
- Cut-to-SizeYes
- MaintenanceRemovable for Cleaning and Replacement
- Country of OriginChina
- WarrantyAs Per Dorman® Warranty Policy
Description
The Dorman® DM-SS70812 is a matched pair of transparent magnetic sealing profiles developed for 135° glass-to-glass shower-door closures. The rigid PVC channels clip mechanically onto the vertical edges of 12 mm glass, while the integrated magnets align and attract when the door closes. This provides positive door retention and supplementary protection against water spray, drafts, and direct glass-to-glass contact. The profiles require no adhesive or drilling and can be cut to the required installation length.
Spec & Technical Data
The Dorman® DM-SS70812 consists of two transparent rigid PVC clip-on channels with integrated magnetic inserts, configured for glass panels meeting at a 135° angle. The channels are sized for 12 mm glass, and the standard strip length is 2.2 m per profile. The paired magnetic attraction system provides reliable alignment and closure along the vertical meeting edges while helping limit water spray and air passage through the glass-to-glass gap.
