Dorman® DM-SS70312 Transparent Side-Fin Shower Door Seal for 12 mm Glass

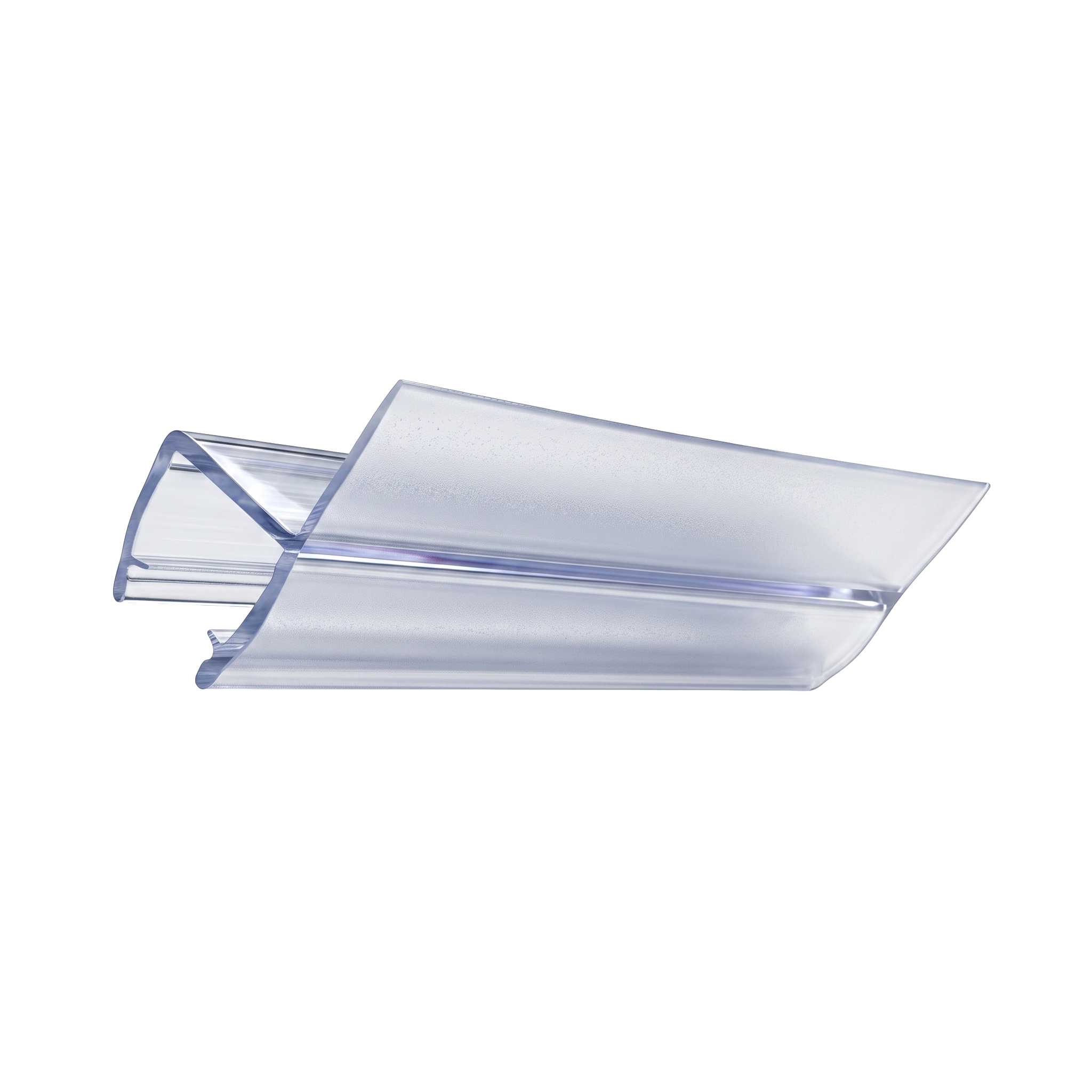

The Dorman® DM-SS70312 Transparent Side-Fin Shower Door Seal features a U-shaped gripping channel with a long, flexible lateral fin. Designed for 12 mm glass, it clips directly onto the glass edge to help close side gaps and contain water within frameless shower enclosures.
Technical details
- Product TypeSide-Fin Shower Door Seal
- BrandDorman®
- Model NumberDM-SS70312
- MaterialCo-Extruded Vinyl
- ColorTransparent
- Compatible Glass Thickness12 mm
- Strip Length2.2 m
- Channel ProfileU-Shaped Clip-On Channel
- Seal ProfileLong Straight Flexible Side Fin
- Installation PositionSide Edge of Glass
- Installation MethodMechanical Clip-On Installation
- Adhesive RequiredNo
- Glass Drilling RequiredNo
- Primary FunctionClosing the Side Gap Around the Glass
- Water ProtectionHelps Reduce Water Splash and Leakage
- Suitable ApplicationsFrameless Shower Doors and Shower Screens
- CuttingCan Be Trimmed to the Required Length
- MaintenanceRemovable, Cleanable and Replaceable
- Country of OriginChina
- WarrantyAs Per Dorman® Warranty Policy
Description
The Dorman® DM-SS70312 is a transparent clip-on sealing profile developed for the side edges of frameless shower doors and screens. Its co-extruded vinyl construction combines a firm U-shaped gripping channel with a flexible lateral fin. The channel holds the seal securely on 12 mm glass, while the projecting fin closes the gap against an adjacent glass panel, wall, or enclosure surface to help reduce water leakage. It installs without adhesive and can be trimmed to the required installation length.
Spec & Technical Data
The Dorman® DM-SS70312 is manufactured from transparent co-extruded vinyl and configured with a U-shaped clip-on channel and a straight flexible side fin. It is specifically sized for 12 mm glass and supplied in a standard length of 2.2 m. Its mechanical clip-on fit requires no adhesive or glass drilling. The flexible fin maintains contact with the adjoining surface while allowing normal glass-door movement and providing replaceable protection against water splash and leakage.
