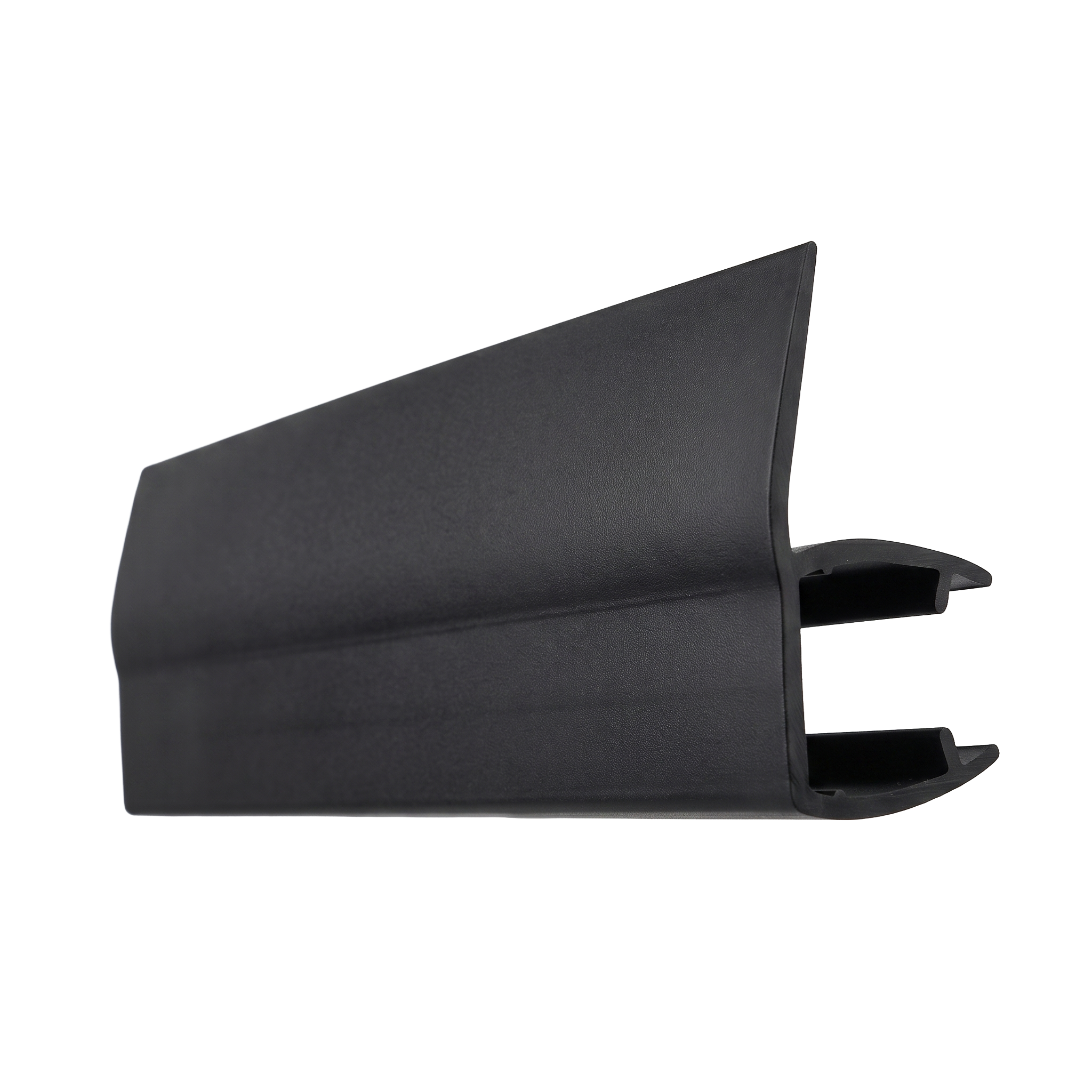

Dorman® DM-SS701110BL3 Black F-Profile Shower Door Seal for 10 mm Glass
The Dorman® DM-SS701110BL3 Black F-Profile Shower Door Seal is designed for direct installation on the edge of 10 mm frameless shower glass. Its flexible sealing fin helps close the side gap adjacent to the glass and reduce water splash and leakage around shower doors and fixed panels. The black strip is supplied in a 3-metre length and can be cut to the required installation size.
Technical details
- Product TypeF-Profile Shower Door Side Seal
- BrandDorman®
- Model NumberDM-SS701110BL3
- MaterialCo-Extruded Vinyl
- ColourBlack
- Compatible Glass Thickness10 mm
- Strip Length3 m
- Mounting ChannelRigid U-Shaped Clip-On Channel
- Sealing ProfileF-Profile with Extended Flexible Fin
- Installation PositionSide Edge of Glass
- Installation MethodDirect Mechanical Fit onto Glass Edge
- Adhesive RequiredNo
- Glass Drilling RequiredNo
- Magnetic InsertNo
- Wool PileNo
- Primary FunctionClosing the Side Gap Adjacent to the Glass
- Water ProtectionHelps Reduce Water Splash and Leakage
- Suitable ApplicationsFrameless Shower Doors and Fixed Shower Panels
- Cut-to-Size CapabilityYes
- MaintenanceRemovable for Cleaning and Replacement
- Country of OriginChina
- WarrantyAs Per Dorman® Warranty Policy
Description
The Dorman® DM-SS701110BL3 is a black F-profile sealing strip designed for the side edges of 10 mm frameless shower glass. It combines a rigid U-shaped channel that clips mechanically onto the glass edge with an extended flexible sealing fin that contacts the adjacent glass panel, wall, or surrounding surface. This configuration helps close the adjoining side gap and limit water escape. Installation requires no adhesive or glass drilling, and the 3-metre strip can be cut or removed for cleaning and replacement.
Spec & Technical Data
The DM-SS701110BL3 is manufactured from co-extruded vinyl and configured as an F-profile with a rigid U-shaped clip-on channel and an extended flexible sealing fin. It is compatible with 10 mm glass and supplied in black with a length of 3 m. The strip installs mechanically by pressing its channel directly onto the side edge of the glass and can be cut to the required length. It contains no magnetic insert or wool pile and requires no adhesive or glass drilling.
