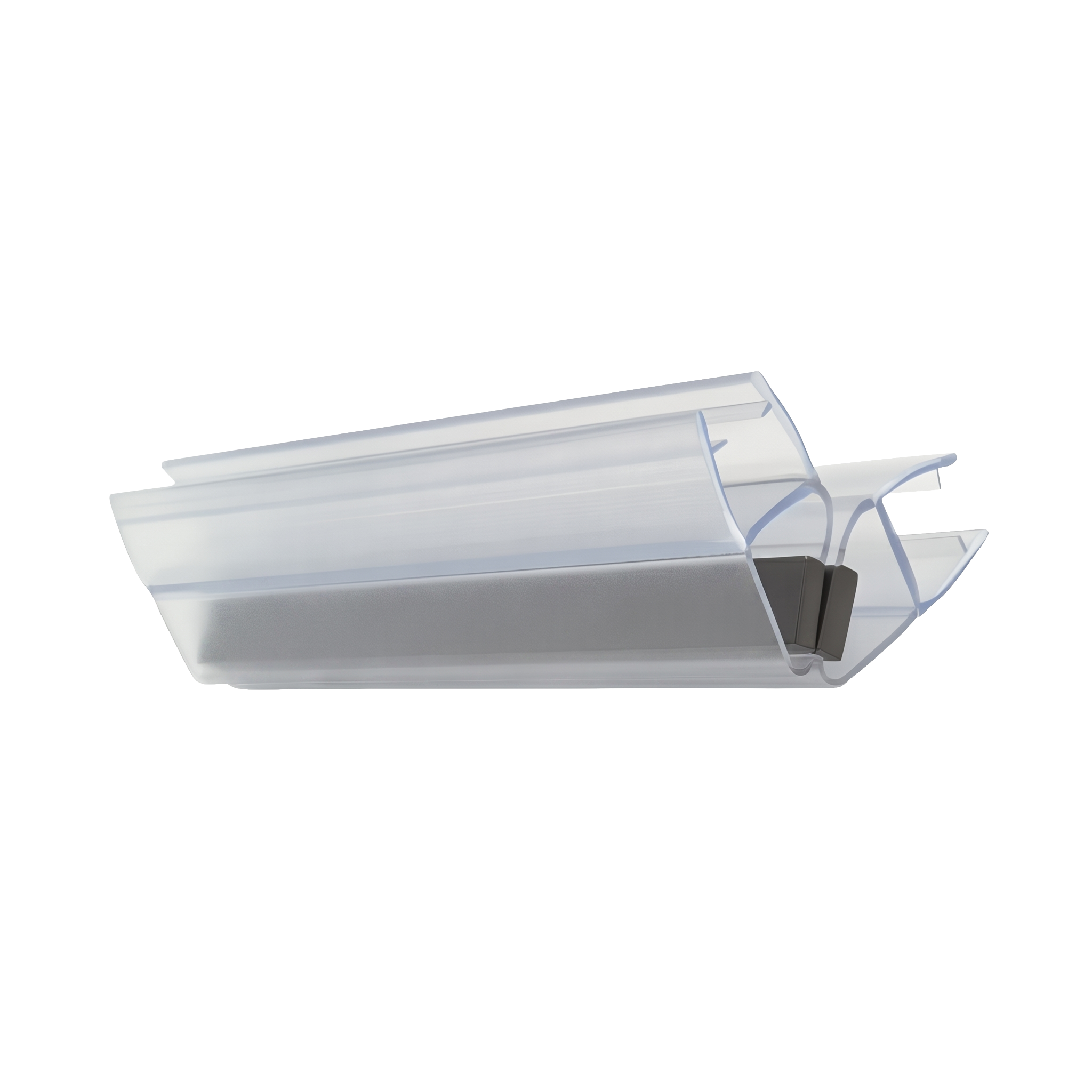

Dorman® DM-SS701010 90° Magnetic Shower Door Seal Pair for 10 mm Glass
The Dorman® DM-SS701010 90° Magnetic Shower Door Seal Pair is designed for secure magnetic closure between frameless shower-door panels positioned at a right angle. Made for 10 mm glass, the two clip-on profiles combine transparent channels with integrated magnetic inserts to help keep the door closed and reduce water leakage.
Technical details
- Product TypeMagnetic Shower Door Seal Pair
- BrandDorman®
- Model NumberDM-SS701010
- MaterialCo-Extruded Vinyl with Magnetic Inserts
- Profile ColorTransparent
- Magnetic Insert ColorBlack
- Compatible Glass Thickness10 mm
- Strip Length2.2 m
- Set ContentsTwo Matching Magnetic Seal Profiles
- Closure Configuration90°
- Connection TypeGlass to Glass or Glass to Adjacent Panel
- Channel ProfileU-Shaped Clip-On Channel
- Installation PositionClosing Edges of the Glass Door and Adjacent Panel
- Installation MethodMechanical Clip-On Installation
- Adhesive RequiredNo
- Glass Drilling RequiredNo
- Primary FunctionMagnetic Door Closure
- Water ProtectionHelps Reduce Water Splash and Leakage
- Suitable ApplicationsFrameless Shower Doors and Shower Enclosures
- CuttingCan Be Trimmed to the Required Length
- MaintenanceRemovable, Cleanable and Replaceable
- Country of OriginChina
- WarrantyAs Per Dorman® Warranty Policy
Description
The Dorman® DM-SS701010 is a matched pair of magnetic sealing profiles designed for 90° frameless shower-door configurations. Each co-extruded vinyl profile incorporates a rigid U-shaped channel that clips securely onto the edge of 10 mm glass and an integrated magnetic insert that attracts the opposing profile. When the door closes, the paired magnets align to create a reliable closure and water-resistant barrier. The profiles install without adhesive or glass drilling and can be trimmed to the required length.
Spec & Technical Data
The Dorman® DM-SS701010 consists of two transparent co-extruded vinyl channels with integrated magnetic inserts, configured for a 90° glass-to-glass or glass-to-adjacent-panel closure. The profiles are sized for 10 mm glass and supplied in a standard length of 2.2 m. Their mechanical clip-on channels provide secure glass-edge retention, while the paired magnets deliver positive door alignment and closure. The system is removable and replaceable without permanently modifying the glass.
