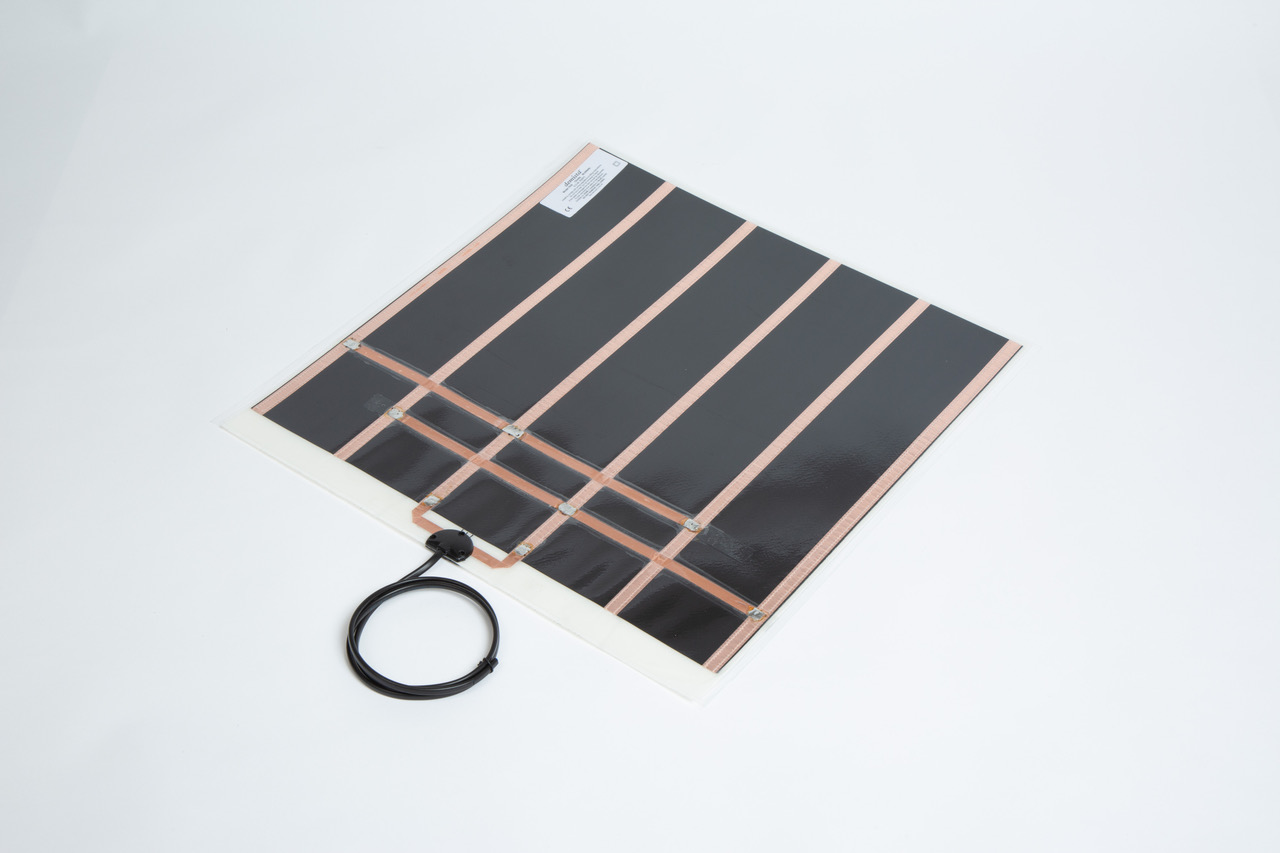

Demista 12V Heated Mirror Demister Pad 800 X 300
Model Number:
7533
Slim mirror demister pad with fast heating and safe 12V operation, keeping mirrors clear and fog-free.
Technical details
- Approved toEN60335-1:2002+A1,A2,A11,A12,A13,A14,A15 and
- EN60335-2-302009+A11
- Power Rating200W/m2
- Standard Voltage12V AC
- Insulation Class2-double insulated
- Thickness1 mm
- IP Rating44
- Cable connector30 x 40 x 5mm
- Cable1m twin core 1.0mm2 oval
- Adhesiveacrylic
- MaterialDouble insulated multi-layer polyester/polyethylene
- Mirror temperatureApproximately 10 -15oC above ambient room temp.
- Heating time3-5 minutes to start heating the mirror (depending on
- ambient room temperature)
- Heat spreadApproximately 30% area around the pad
Description
High-performance mirror demister heating pad designed to prevent fog and ensure clear visibility in humid environments. Features low-voltage 12V AC operation, double insulation, and fast heating within 3?5 minutes, with efficient and safe performance for bathroom applications.
Spec & Technical Data
Demista? Model Number : 7533
Nominal Power (Watts): 43
Dimensions (mm): 800 X 300
Resistance range (Ohms): 3.1 ? 3.6
Current (Amps): 3.6
